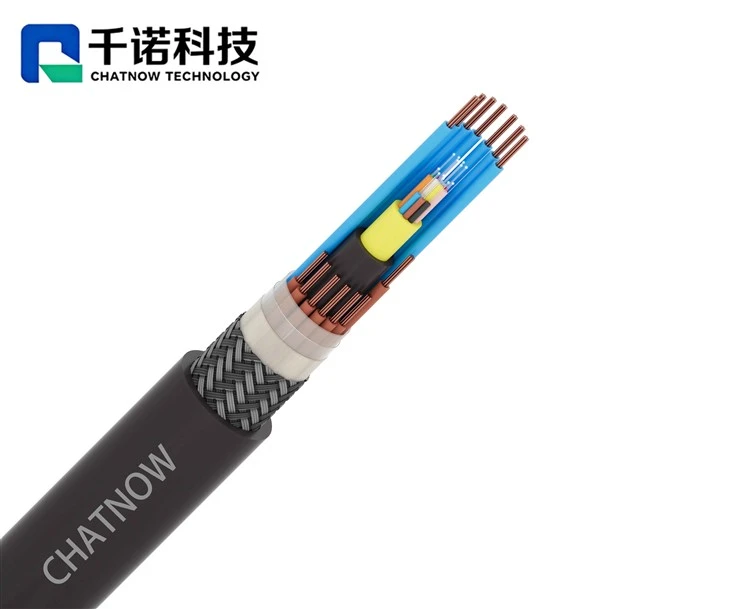

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of copper fiber hybrid cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
The cable can be customized with different fiber types, including G.657A1, G.657A2, G.652D, as well as copper conductor sizes and insulation materials according to application requirements. It is suitable for indoor and outdoor communication systems, FTTA, security systems, industrial automation, smart buildings, telecom infrastructure, and other applications where both optical communication and electrical power are required.
Our copper fiber hybrid cables support OEM/ODM customization, small-batch orders, and different jacket materials such as PVC, LSZH and PE. We can also develop customized constructions according to your required fiber count, copper conductor size, voltage rating and installation environment.
.
Applications
- Fiber-to-the-antenna (FTTA) systems
- Telecom and broadband infrastructure
- Security and surveillance systems
- Industrial automation networks
- Smart building systems
- Remote monitoring equipment
- Access control and communication systems
- Outdoor communication equipment
- Data transmission and power supply systems
- Industrial Ethernet and control applications
- Intelligent transportation infrastructure
- Oil & gas and other industrial communication networks
CONSTRUCTION
| Conductor Material | Bare copper wire | / |
| Conductor Surface | 3×1.5mm2 (24AWG/14C) | 8C Fiber Optical |
| Core Insulation Material | PP | TPU |
| Tape1 | PET tape | |
| Stranding | 14C/24AWG+8CFiber Cabling+Filler | |
| Drain | / | |
| Material Outer Sheath | TPU | |
CHARACTERISTICS
|
Cable performance(20℃) |
Data of product |
|
Inner conductor DC resistance |
1.5mm2≤13.3Ω/km |
| Operating temperature | -40°C to +75°C |
| Flame retardancy | IEC 60332-1-2 |
| Bending radius | 8xD |
| Optical attenuation |
1310NM ≤0.4 db/km 1550NM ≤0.3 db/km |
REGULAR PACKING
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum
Key features
- Optical fiber and copper conductors integrated into one cable
- Supports simultaneous data and power transmission
- Helps reduce cable installation and routing complexity
- Available with different fiber counts and conductor sizes
- G.657A1 / G.657A2 / G.652D fiber options
- Single-mode and multimode configurations available
- PVC, LSZH and PE sheath options
- Flexible construction for demanding installation environments
- Suitable for indoor, outdoor and industrial applications
- OEM and ODM cable construction available
- Customized conductor, fiber, jacket and shielding options
- Small-batch production supported
WHY CHOOSE US
We can develop copper fiber hybrid cable solutions according to your specific technical requirements. Customization can include fiber type, fiber count, copper conductor size, insulation material, shielding structure, overall diameter, jacket material, voltage rating and mechanical requirements.
For customers looking for a Belden-equivalent or customized hybrid cable, we can also evaluate the original cable specification and provide an optimized alternative solution with competitive pricing, flexible MOQ and stable production capability.
20+ years of cable manufacturing experience | OEM/ODM | Small MOQ | UL / CE / RoHS / REACH available
