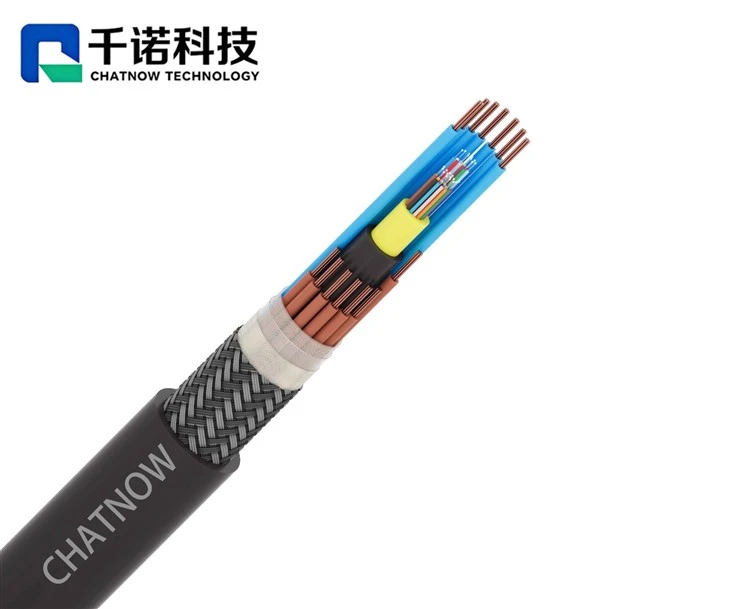

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of hybrid optical fiber cable 3×2.5mm² + 24f g.657a2 – tpu, braided, black matte in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
CONSTRUCTION
| Component | Specification |
|---|---|
| Power Conductor | 2.5mm², 7/0.25mm Stranded Bare Copper |
| Power Insulation | PP, 1.70±0.10mm |
| Power Colors | Brown (7C), Blue (7C) |
| Optical Fiber | G.657A2 (24 cores), 7.5±0.2mm, Black Matte TPU |
| Cabling | 14C/22AWG + 24C Fiber Cabling + Filler |
| Tape | Non-woven + PET Tape |
| Twisted O.D. | 11.00±1.0mm |
| Braid Shield | Bare Copper, 16×10/0.14mm, ~60% Coverage |
| Outer Jacket | TPU, 13.70±0.50mm, Black Matte |
APPLICATION
- FTTA (Fiber to the Antenna)
- 5G small cells and remote radio heads
- Distributed antenna systems (DAS)
- Hybrid power and data transmission
KEY FEATURES
- 3 power conductors + 24 optical fibers in one cable
- PP/TPU insulation – durable and flexible
- Bare copper braid shielding – EMI protection
- TPU outer sheath – abrasion and oil resistant
- Black matte finish – professional appearance
ABOUT COMPANY
UL/CE certified manufacturer of hybrid, control, and communication cables. We specialize in custom solutions for industrial, telecom, and infrastructure projects. Our products are engineered for reliability, durability, and consistent performance.
MANUFACTURING PROCESS
Controlled production covering conductor stranding, insulation extrusion, fiber coloring, cabling, shielding, and jacketing. Every stage monitored. Finished cables tested before shipment to ensure quality.
CERTIFICATIONS
UL, CE, and RoHS certified. Compliant with international safety and environmental standards. Verified through regular audits.
QUALITY INSPECTION
Each cable tested for electrical and optical performance before shipment. Visual and dimensional checks throughout production. Every reel meets specification before shipping.
SPECIFICATION FOR APPROVAL
| Style | BUS Cable |
| Size | RS485 2×2×22AWG |
| Standard | EIA/TIA RS-485 |
| P/N | CH012 |
CONSTRUCTION
| Parameter | Specification |
|---|---|
| Conductor | 22AWG, 7/0.254mm Stranded Tinned Copper |
| Insulation | Foam PE, 1.80±0.10mm |
| Pair Colors | White/Blue, White/Orange |
| Filler | PP Filler |
| Tape | Al/PET Foil |
| Drain Wire | 7/0.20mm Tinned Copper |
| Braid Shield | Tinned Copper, ≥80% Coverage |
| Outer Jacket | TPE, 9.00±0.50mm, Optional Color |
APPLICATION
- RS485 serial communication
- Modbus RTU networks
- Industrial automation and control systems
- Building automation
- Data acquisition and monitoring equipment
- Panel wiring and equipment interconnection
REGULAR PACKING
Standard length: 305m (1000ft) / reel
Wooden reel or plastic spool available
Customized lengths upon request
Protective stretch film and export carton packaging optional
