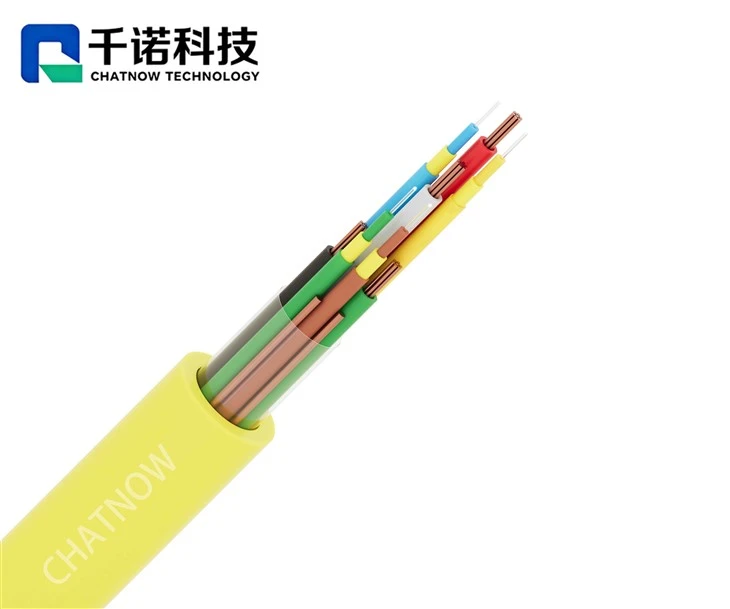

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of power and data hybrid cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
Our hybrid cables can be customized with different conductor sizes, fiber counts, shielding structures, insulation materials, and outer jackets according to project requirements. Options such as copper conductors, twisted-pair data cores, fiber optic units, shielding, LSZH, PVC, PUR, and other jacket materials are available.
These cables are suitable for industrial automation, security systems, intelligent buildings, communication networks, CCTV, access control, BMS, IoT equipment, robotics, and other power-and-data integrated applications.
.
Applications
- Industrial Automation:
Connects power and communication between controllers, sensors, actuators, motors, and automation equipment.
- Security & Surveillance:
Suitable for CCTV cameras, access control systems, security devices, and other equipment requiring simultaneous power and data transmission.
- Smart Buildings & BMS:
Used in building automation, lighting control, HVAC systems, access systems, and intelligent building networks.
- Robotics & Motion Systems:
Hybrid constructions can integrate power and communication elements for robotic equipment, automated machinery, and moving applications.
- Fiber + Power Applications:
Fiber optic elements can be combined with copper power conductors to provide high-speed data communication and electrical power through one cable.
CONSTRUCTION
| Conductor Material | Bare copper wire | / |
| Conductor Surface | 18AWG/4C |
4C/Fibre Optic Single Mode |
| Core Insulation Material | LSZH | LSZH |
| Tape1 | PET tape | |
| Stranding | Strength Member Filler+4C/18AWG+Fiber Cabling | |
| Drain | / | |
| Material Outer Sheath | LSZH | |
CHARACTERISTICS
|
Cable performance(20℃) |
Data of product |
|
Inner conductor DC resistance |
≤21.9Ω/km |
| Insulation resistance | >1000MΩ·km |
| Operating voltage | 300V |
| Withstand voltage | AC/2500V 1min |
| Flame retardancy | IEC 60332-1-2 |
| Bending radius | 12xD |
| Optical attenuation |
1310NM ≤0.36 db/km 1550NM ≤0.25 db/km |
REGULAR PACKING
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum
Key features
- Combined power and data transmission in one cable
- Copper + fiber or copper + communication conductor options
- Flexible conductor and core configurations
- Excellent signal integrity and EMI protection options
- PVC, LSZH, PUR and customized jacket materials
- Suitable for indoor and outdoor applications
- OEM/ODM and custom cable construction available
- Small MOQ and short lead time
- UL, CE, RoHS and REACH compliant options
WHY CHOOSE US
We can develop copper fiber hybrid cable solutions according to your specific technical requirements. Customization can include fiber type, fiber count, copper conductor size, insulation material, shielding structure, overall diameter, jacket material, voltage rating and mechanical requirements.
For customers looking for a Belden-equivalent or customized hybrid cable, we can also evaluate the original cable specification and provide an optimized alternative solution with competitive pricing, flexible MOQ and stable production capability.
20+ years of cable manufacturing experience | OEM/ODM | Small MOQ | UL / CE / RoHS / REACH available
