Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of can bus data cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
The cable is commonly designed with twisted pair conductors to support balanced signal transmission and help maintain communication performance over the cable length. Depending on the application, additional shielding can be incorporated to improve resistance to electromagnetic interference, making the cable suitable for environments containing motors, inverters, power equipment, and other potential sources of electrical noise.
Applications
Our CAN Bus Data Cable can be used in a variety of communication and control systems, including:
- Automotive CAN communication networks
- CANopen industrial automation systems
- SAE J1939 vehicle communication
- Electric and hybrid vehicles
- Battery Management Systems (BMS)
- Construction and agricultural machinery
- Industrial controllers and PLC systems
- Robotics and motion control equipment
- Energy storage and power management systems
- Sensors, meters, and monitoring equipment
- Transportation and vehicle electronics
For industrial applications, the cable can be manufactured with different jacket materials and mechanical structures to accommodate fixed installations, equipment wiring, or demanding operating conditions.

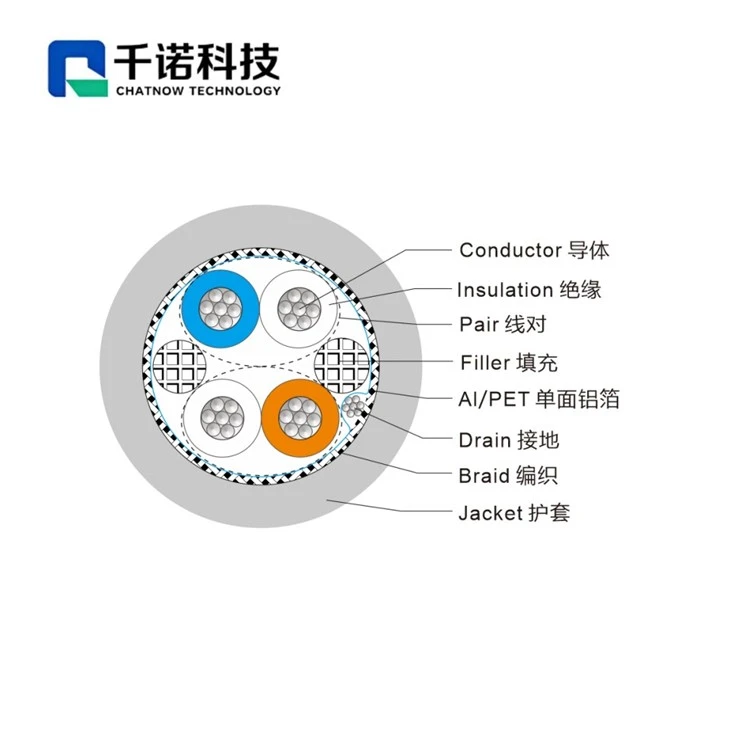

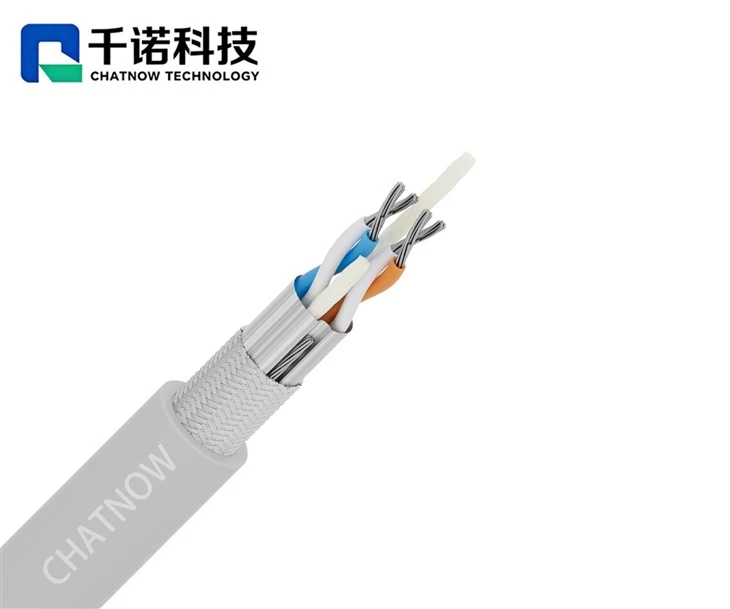

CONSTRUCTION
| Conductor Material | Stranded Tinned Copper |
| Conductor Surface | 2×2×22AWG |
| Core Insulation Material | Foam-PE |
| Screen1 Material | Al/PET |
| Drain Material | Tinned copper |
| Screen2 Material | / |
| Material Outer Sheath | TPE |
CHARACTERISTICS
|
Cable performance(20℃) |
Data of product |
|
Inner conductor DC resistance |
≤57.4Ω/km |
| Impedance | 120 ±12Ω |
|
Operating voltage |
300V |
| Capacitance |
Core to Core < 45 pF/m Core to Shield < 81 pF/m |
|
Flame retardancy |
IEC60032-1-2 |
| CPR Compliance | CPR Compliance |
| Operating temperature | -30℃~+80℃ |
REGULAR PACKING
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum
Key features
- Designed for CAN Bus data communication
- Suitable for CANopen and J1939 applications
- Twisted-pair construction for balanced signal transmission
- Optional foil or braided shielding
- Copper or tinned copper conductor options
- Multiple conductor sizes available
- PVC, PUR, PE, and LSZH jacket options
- Flexible construction for equipment wiring
- Custom specifications available
- Suitable for automotive and industrial environments
- OEM/ODM manufacturing support
WHY CHOOSE US
With more than 20 years of cable manufacturing experience, we provide customized communication cable solutions for international customers. From conductor selection and shielding design to insulation and outer jacket materials, each part of the cable construction can be adapted to the customer's application.
Whether you are sourcing CAN Bus Cable, CAN Data Cable, CANopen Cable, J1939 Cable, or customized automotive communication cable, we can provide technical support, sample production, and competitive factory-direct pricing.
