Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of can bus communication cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.

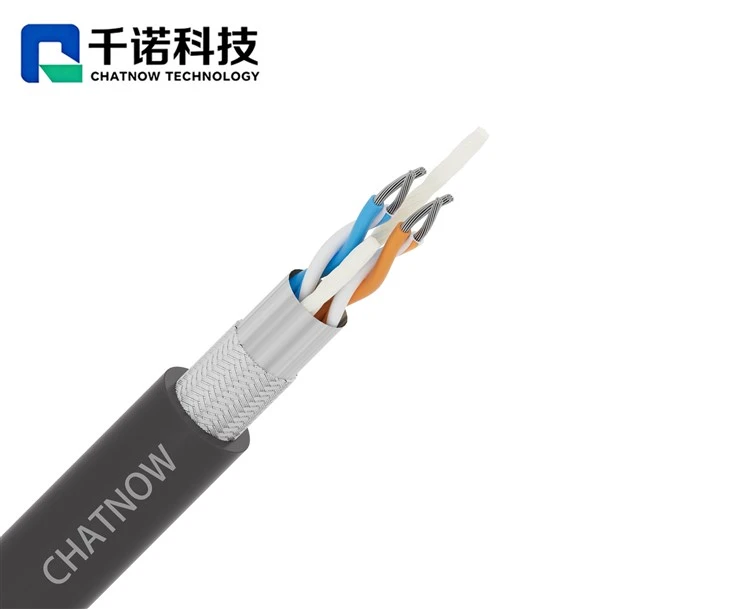

The cable is typically manufactured with a carefully matched pair of conductors to support the CAN_H and CAN_L communication lines. The cable structure can be optimized according to transmission distance, installation environment, operating temperature, flexibility requirements, and electromagnetic conditions. Shielded versions are available for applications where additional protection against external electrical interference is required.
Applications
The cable provides a practical connection solution for various CAN-based communication networks, including:
Automotive: ECU communication, vehicle control systems, electric vehicles, battery monitoring, and onboard electronics.
Industrial Automation: Controllers, sensors, drives, machinery, PLC-related communication, and intelligent equipment.
Heavy Equipment: Trucks, cranes, excavators, agricultural machines, and other mobile machinery using CAN or J1939 communication.
Energy Systems: Battery management systems, energy storage equipment, charging systems, and power monitoring devices.
Transportation: Vehicle monitoring, fleet control, instrumentation, and intelligent transportation equipment.

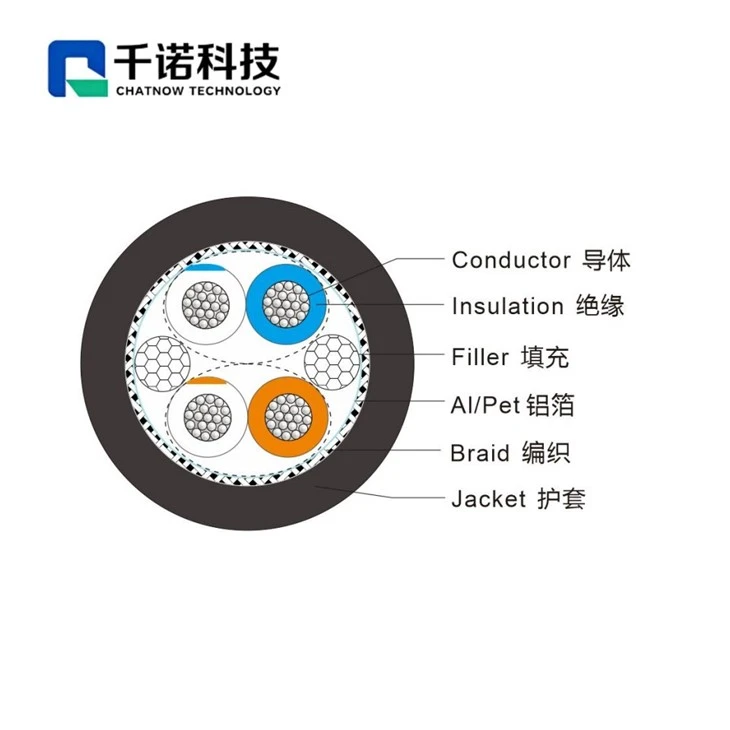

CONSTRUCTION
| Conductor Material | Stranded Tinned Copper |
| Conductor Surface | RS485 2×2×1.0mm2 |
| Core Insulation Material | Foam-PE |
| Screen1 Material | Al/PET |
| Drain Material | Tinned copper |
| Screen2 Material | / |
| Material Outer Sheath | LSZH |
CHARACTERISTICS
|
Cable performance(20℃) |
Data of product |
|
Inner conductor DC resistance |
≤19.2Ω/km |
| Impedance | 120 ±12Ω |
|
Operating voltage |
300V |
| Capacitance | Nom. 41pF/m |
|
Flame retardancy |
IEC60332-1-2 IEC60332-3-24 |
| CPR Compliance | CPR Compliance |
REGULAR PACKING
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum
Key features
- Reliable CAN Communication – Designed for stable data exchange between multiple CAN network nodes.
- Twisted-Pair Construction – Helps maintain balanced signal transmission and supports CAN_H/CAN_L communication.
- Excellent Signal Integrity – Suitable for CAN-based systems requiring consistent communication performance.
- EMI Protection – Optional foil or braided shielding helps reduce the impact of electromagnetic interference.
- Flexible Conductor Options – Available with different conductor sizes and copper or tinned copper conductors.
- Multiple Jacket Materials – PVC, PUR, PE, and LSZH options can be selected for different environments.
- CANopen & J1939 Compatible – Suitable for industrial CANopen networks and SAE J1939 vehicle communication systems.
- Wide Application Range – Used in automotive electronics, EVs, BMS, industrial automation, robotics, heavy machinery, and transportation.
- Customizable Construction – Conductor, insulation, shielding, jacket, color, and printing can be customized.
- OEM/ODM Support – Available for equipment manufacturers, distributors, system integrators, and project-based applications.
- Suitable for Harsh Environments – Cable construction can be adapted for vibration, temperature variation, mechanical stress, and demanding installations.
- Factory-Direct Supply – Supports small MOQ, customized specifications, and competitive pricing.
WHY CHOOSE US
Selecting the appropriate CAN Bus Communication Cable is important for maintaining dependable communication between network nodes. Conductor construction, impedance characteristics, twisting, shielding, insulation, and jacket material can all influence the cable's suitability for a particular installation.
We manufacture CAN communication cables according to customer specifications and application requirements. OEM and ODM services are available for distributors, system integrators, equipment manufacturers, and engineering projects. Customized cable structures, conductor sizes, shielding designs, jacket materials, and packaging can be provided according to technical requirements.
