Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of PH120 Fire Resistant Cable 3×1.5mm² in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
For emergency power and fire alarm systems. BS EN 50200 PH120 tested - circuits survive 120 minutes in fire. Silicone insulation, LSZH jacket, foil shield.
🔌 Fire-Resistant Cable PH120 - 3D Product View
🔌 Fire-Resistant Cable PH120 - Cross-section View
FIRE TEST
APPLICATION
- Fire alarm and emergency power circuits in high-rise buildings
- Tunnel, metro, and underground facility safety systems
- Emergency lighting and evacuation route power supply
- Data and control lines requiring shielding in public buildings

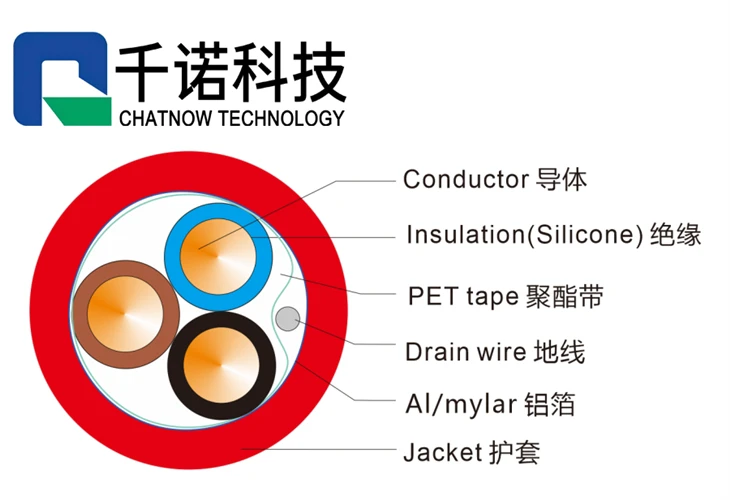

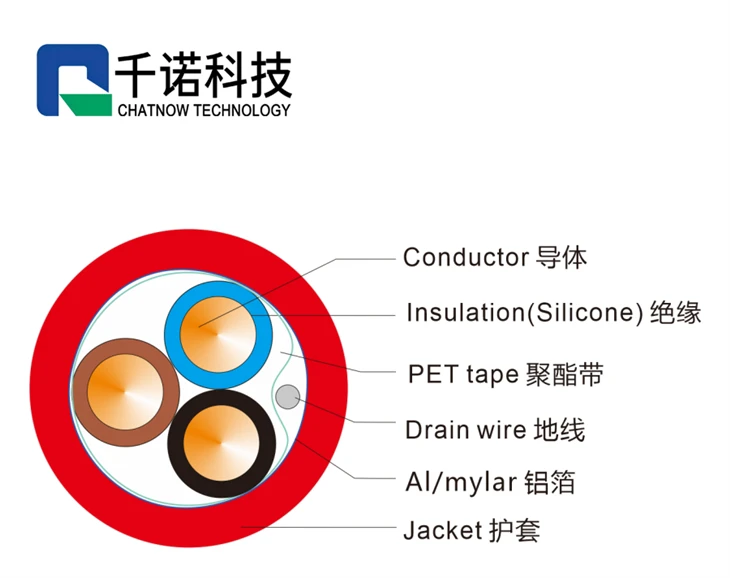

CABLE STRUCTURE
Insulation - Silicone rubber, 2.50±0.10mm O.D.
Cores - Blue, Brown, Black
Tape - PET tape
Drain - 1/0.40mm tinned copper
Shield - Al/Mylar foil
Jacket - Flame retardant LSZH, 7.0±0.30mm, Red
Marking - P/N 32905N2 CHATNOW FIRE RESISTANCE SHIELDED CABLE (UL) E541076 1.5MM²/3C EN50200 PH120 xxxxM
Product Data
≤12.1Ω/km
AC 2kV / 5min, no breakdown
300/300V
-20℃ to +90℃
BS EN 50200 PH120
IEC 60332-1-2
BS EN 61034-2
BS EN 60754-1
RoHS & REACH
SHIPPING & PACKING
Wooden drum / Plastic reel / Iron reel / Carton
Customized per cable length
As per customer request
Available (e.g. 100m / 500m / 1000m)
📦 Wooden Drum Packing
📦 Plastic Reel Packing
📦 Iron Reel Packing
📦 Carton Packing
OUR STORY
Chatnow Technology builds fire-resistant, bus, and industrial cables for buildings, transport, and energy projects. Fire-rated products are tested to BS EN 50200.
OUR PROCESS
- Solid bare copper conductor drawing to 1.36mm
- Silicone rubber insulation extrusion - heat resistant to +90℃
- Cabling with PET tape, Al/Mylar foil, and tinned copper drain wire
- Flame retardant LSZH jacket extrusion and marking print
- Dielectric strength and fire test verification before shipment
STANDARDS
- BS EN 50200 PH120 - circuit integrity under fire
- IEC 60332-1-2 - flame retardancy
- BS EN 61034-2 / BS EN 60754-1 - smoke and acid gas emission
- UL E541076 / RoHS & REACH
TESTING & INSPECTION
