Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of rs-485 2×2×22awg overall shielded data cable – 120ω, tpe jacket, double shielding in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
ABOUT COMPANY
CERTIFICATIONS

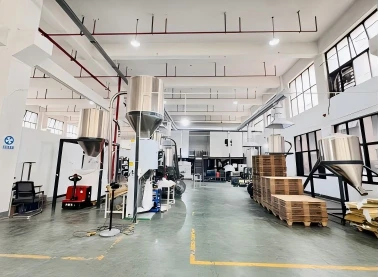

MANUFACTURING PROCESS
QUALITY INSPECTION
CHARACTERISTICS
|
Cable performance(at 20℃) |
Data of product |
|
Inner Conductor DC Resistance |
≤59.7Ω/km |
|
Impedance |
120Ω±10% |
|
Capacitance |
Nom. 45pF/m |
|
Test voltage |
1000V DC (1min) |
Functional Advantages
Double Shielding – Individual foil + overall braid for noise immunity
Low Capacitance – Foam PE insulation for longer transmission distance
120Ω Impedance – Matches RS-485 standard, reduces signal reflection
Flexible TPE Jacket – Easy installation in tight spaces
Stranded Tinned Copper – Flexible and corrosion-resistant
Color-Coded Pairs – Quick and error-free termination
Industrial Grade – -20°C to +75°C, RoHS & REACH compliant
CONSTRUCTION
| Conductor Material | Stranded Tinned Copper |
| Conductor Surface | 7/0.254±0.005mm |
| Core Insulation Material | Foam PE |
| Screen | Al/PET Foil |
| Drain Wire | Tinned Copper (7/0.20mm) |
| Shield | Tinned Copper Braid |
| Outer Sheath | TPE |
PACKING
Standard packing formats include:
100M / 300M / 500M / 1000M available
Wooden reel or plastic spool available
Customized lengths upon request
Protective stretch film and export carton packaging optional
Neutral or customer-branded packaging available
APPLICATION
RS-485 serial communication networks
Modbus RTU and Modbus TCP systems
Building automation and HVAC control
Industrial automation and factory floor networks
Data acquisition and monitoring equipment
Control panel interconnections
Selection Notes (Engineering Tips)
Match 120Ω impedance – avoid signal reflection
Terminate both ends – use 120Ω resistors on the first and last nodes
Ground drain wire at one point only – prevents ground loops
Keep distance from power cables – minimum 300mm separation
Observe bend radius – 10× cable OD minimum
Max 32 nodes – use repeaters for more
Cable length vs. baud rate – longer runs = lower speed
Avoid outdoor use – rated for -20°C to +75°C, indoor only
