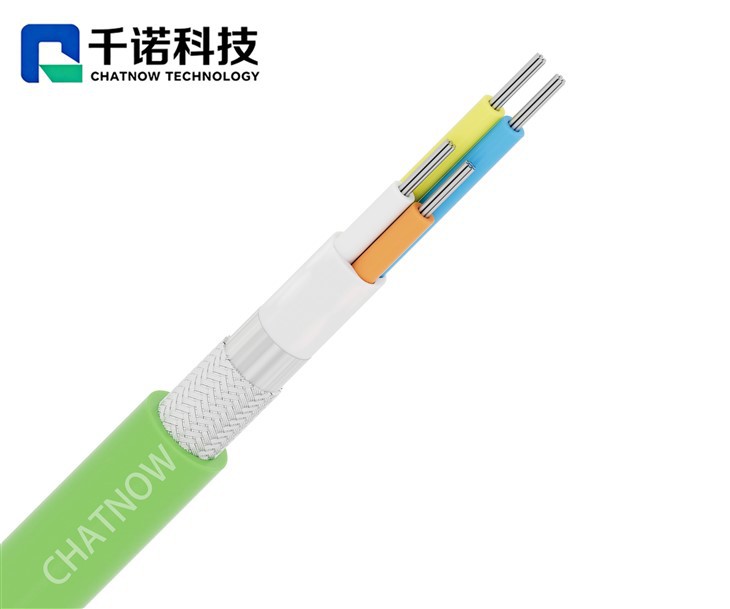

Industrial Profinet Cable Cat5e 4×22AWG

Style ：PROFINET Cable
Size : CAT 5e 4×22AWG
In industrial Ethernet networks, simplified wiring and signal consistency are often more critical than sheer transmission speed. This CAT5e 4×22AWG PROFINET cable adopts a single 4-core structure, making it suitable for automation systems where compact routing and clear conductor identification are required. The combination of foil + braided shielding and LSZH jackets supports stable data exchange in factory environments with electrical interference and strict safety requirements.

Send Inquiry

Description

Technical Parameters

APPLICATION

This cable is commonly applied in:

PROFINET connections between PLCs, I/O modules, and field devices
Industrial Ethernet wiring inside control cabinets
Automation systems requiring compact and organized Ethernet cabling
Industrial environments where fire safety and low-smoke performance are required

STANDARDS

Halogenated acid gas content	IEC 60754-1
smoke density	IEC61034-1/2
Flame retardant	IEC60332-1-2 IEC60332-3-22
UV resistant	UL15811200

CONSTRUCTION

Item	Description
Conductor Material	Tinned Copper Stranded
Conductor Surface / Structure	7/0.25 ± 0.01 mm
Core Insulation Material	HDPE or PP
Screen1 Material	Al/PET Aluminium Foil (Single-sided)
Drain Material	Tinned Copper
Screen2 Material	Braid
Material Outer Sheath	LSZH
Inner Jacket Material	LSZH (Natural)

CHARACTERISTICS

Cable performance	Data of product
Inner conductor DC resistance(20℃)	≤57.4/km
Impedance	100±10Ω
Attenuation	≤6.0dB/100m @10MHz ≤22.0dB/100m @100MHz
Capacitance conductor to conductor	56pF/m
Test Voltage	1kV/1min,no breakdown
Insulation DC resistance	≥1GQ ·km

REGULAR PACKING

100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum

Product Advantages

4-core CAT5e structure simplifies installation compared with multi-pair designs
Supports stable industrial Ethernet communication in automation systems
Foil + braided shielding helps reduce electromagnetic interference
LSZH outer and inner jackets improve safety in enclosed industrial spaces
Stranded tinned copper conductors enhance flexibility and long-term reliability

FAQ

Q: What is the difference between this 4-core cable and PROFINET 2×2 pair cables?
A: The 4-core structure allows simpler routing and conductor identification, which can be advantageous in compact control cabinets or specific installation layouts.

Q: Is this cable suitable for environments with fire safety requirements?
A: Yes. Both the inner and outer jackets use LSZH material to help limit smoke and toxic gas emission in case of fire.

Q: Can insulation materials be selected based on project needs?
A: Yes. HDPE or PP insulation options are available depending on application requirements.
