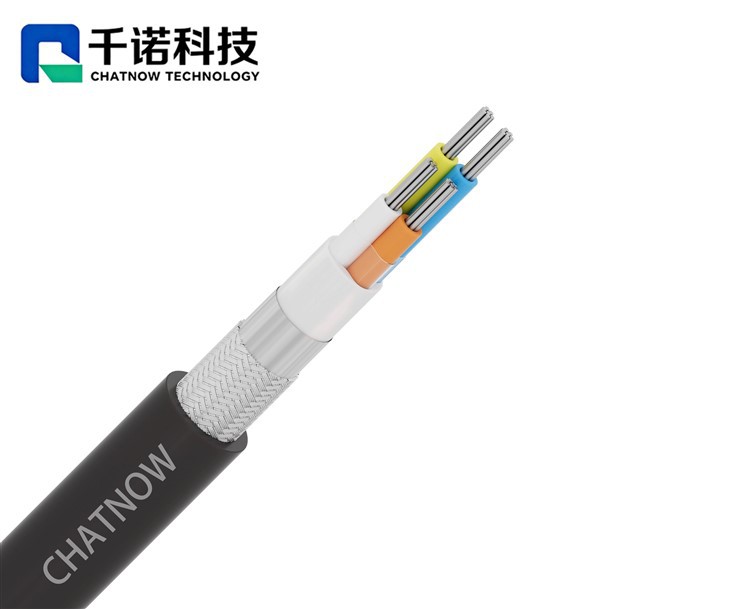

Profinet CAT5e 2×2×22AWG

Style：PROFINET Cable
Size: CAT 5e 2×2×22AWG
In industrial automation systems, Ethernet communication is not only about data speed, but also about network stability and continuity during long-term operation. This PROFINET CAT5e industrial Ethernet cable is developed to support continuous data exchange between controllers, distributed I/O, and field devices in factory environments where electrical noise and mechanical movement are common. By combining a shielded multi-pair structure with a flexible TPE jacket, the cable helps maintain consistent communication performance across industrial Ethernet networks.

Send Inquiry

Description

Technical Parameters

APPLICATION

This cable is widely used in:

This cable is commonly installed in industrial Ethernet systems such as:
PROFINET communication lines between PLCs and I/O stations
Ethernet connections inside control cabinets and automation panels
Network wiring for production lines and automated machinery
Industrial data communication where interference resistance is required

Product Advantages

Engineered for continuous industrial Ethernet communication, not office networks
CAT5e structure supports stable data transmission under industrial operating conditions
Shielded design helps reduce signal disturbance caused by nearby equipment
Tinned copper conductors improve long-term electrical contact reliability
TPE outer sheath provides flexibility and resistance to industrial installation stress

CONSTRUCTION

Conductor Material	Tinned copper
Conductor Surface	7/0.254±0.01mm
Core Insulation Material	PE
Screen	PET tape
Drain Wire	Tinned copper
Shield	AI/PET
Outer Sheath	TPE

CHARACTERISTICS

Cable performance	Data of product
Inner conductor DC resistance(20℃)	≤57.4/km
Impedance	100±10Ω
Capacitance conductor to conductor	56pF/m
Test Voltage	1kV/1min,no breakdown
Insulation DC resistance	≥1GQ-km

REGULAR PACKING

The cable can be supplied in different standard lengths according to installation requirements:

100M / 300M / 500M / 1000M
500FT / 1000FT
Coil or Drum packaging available

Alternative packing formats can be arranged upon request.

Support Available for This Product

Custom cable configurations for different industrial Ethernet projects
Stable production scheduling for automation system orders
Technical assistance during cable selection and application
Sample support for project evaluation

FAQ

Q: Is this cable intended for PROFINET industrial networks?
A: Yes. It is developed for industrial Ethernet systems using PROFINET communication.

Q: How does this cable differ from standard CAT5e cables?
A: It is built for industrial environments, with shielding and materials selected to support stable operation under electrical and mechanical stress.

Q: Can specifications be adjusted for specific projects?
A: Yes. Cable structure, jacket material, and packing length can be customized.
