APPLICATION

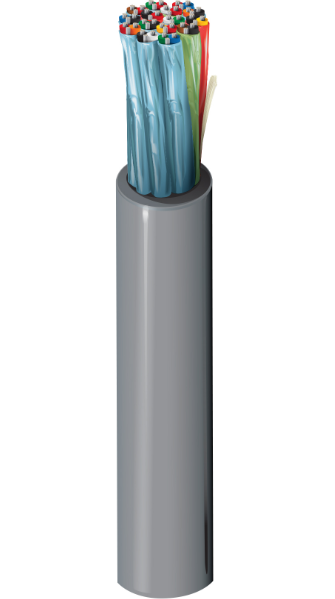

This 6-pair individually shielded cable is a professional multi-channel signal transmission product, designed for low-level weak signal scenarios with strict anti-interference and anti-crosstalk requirements. The 18 AWG stranded tinned copper conductor ensures excellent conductivity and flexibility, PP insulation provides ultra-low dielectric loss, and the independent shielding of each pair with matched drain wire completely eliminates inter-pair crosstalk and suppresses external EMI/RFI interference. It is widely used in professional audio, industrial automation, instrumentation and other fields, suitable for indoor fixed wiring and short-distance flexible interconnection.
This cable is commonly selected for:
- Professional Audio & Broadcasting Engineering
- Industrial Automation & Process Control Systems
- Precision Instrumentation & Measurement Systems
- Building Intelligence & Security Systems
CONSTRUCTION
|
Conductor Material |
Tinned copper |
|
Conductor Surface / Structure |
19/30AWG |
|
Core Insulation Material |
PP |
|
Screen1 Material |
Bi-Laminate (Alum+Poly) |
|
Drain Material |
Tinned copper |
|
Screen2 Material |
N/A |
|
Material Outer Sheath |
PVC |
CHARACTERISTICS
|
Cable performance(at 20℃) |
Data of product |
|
Inner Conductor DC Resistance |
≤27.0Ω/km |
SPECIFIATION FOR APPROVAL
|
Impedance |
50±10Ω |
|
Capacitance conductor to conductor |
Nom.30pF/m |
|
Capacitance conductor to shielded |
Nom.180pF/m |
|
Max.operation voltage |
300V |
|
Operating temperature |
-20℃ to+80℃ |
|
Flame Rating |
IEC60332-1-2 |
|
General requirements |
RoHS Compliant |
REGULAR PACKING
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum
