Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of multipair individually screened cables-belden equivalent 9729 in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
APPLICATION
This cable is commonly selected for:
- Computer-peripheral RS-232/422 serial communication (printers, scanners, data loggers, etc.)
- Small-scale digital audio transmission (home audio, small conference room sound systems, professional audio equipment interconnection)
- Auxiliary signal transmission for small industrial control systems and light industrial equipment
- Connection of precision instrumentation, test equipment and data acquisition devices
- Interconnection of embedded systems, smart terminals and peripheral modules
CONSTRUCTION
|
Conductor Material |
Tinned copper |
|
Conductor Surface / Structure |
7/32AWG |
|
Core Insulation Material |
Foam PE |
|
Screen1 Material |
Bi-Laminate (Alum+Poly) |
|
Drain Material |
Tinned copper |
|
Screen2 Material |
N/A |
|
Material Outer Sheath |
PVC |
CHARACTERISTICS
|
Cable performance(at 20℃) |
Data of product |
|
Inner Conductor DC Resistance |
≤57.15Ω/km |
SPECIFIATION FOR APPROVAL
|
Impedance |
100±10Ω |
|
Capacitance conductor to conductor |
Nom.41pF/m |
|
Capacitance conductor to shielded |
Nom.76.1pF/m |
|
Max.operation voltage |
300V |
|
Operating temperature |
-20℃ to+75℃ |
|
Flame Rating |
IEC60332-1-2 |
|
General requirements |
RoHS Compliant |
REGULAR PACKING
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum
Structural Design & Signal Benefits

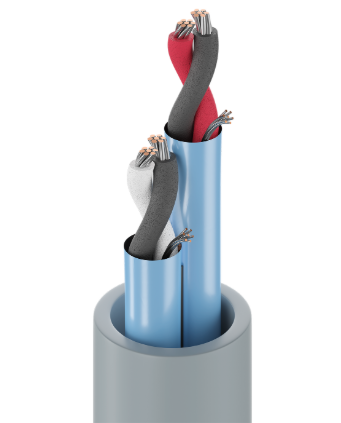

- Structural Design: 24 AWG stranded (7×32) tinned copper conductors, high-performance insulation, 2 independent twisted pairs with 100% coverage individual shielding, dedicated 24 AWG stranded tinned copper drain wire per pair, integral PVC outer jacket.
- Signal Benefits: Supports dual-purpose transmission of RS-232/422 serial signals and digital audio signals without mutual interference; low loss and high signal integrity for short-to-medium distance transmission; excellent anti-EMI/RFI capability; flexible and easy to wire; durable and long service life.
Installation & Performance Considerations
- Installation Notes: Conduct pre-installation inspection; comply with bending radius (8×OD static, 12×OD dynamic); max pulling tension ≤160N; keep 20cm away from high-power cables; terminate 2 pairs correctly, single-point grounding for each drain wire; indoor use only (-15℃~+65℃).
- Performance Notes: Operate within 250V rated voltage and 24 AWG ampacity; control transmission distance by signal type; ensure impedance matching; maintain shielding/grounding integrity; avoid high-noise environments and regular maintenance.
