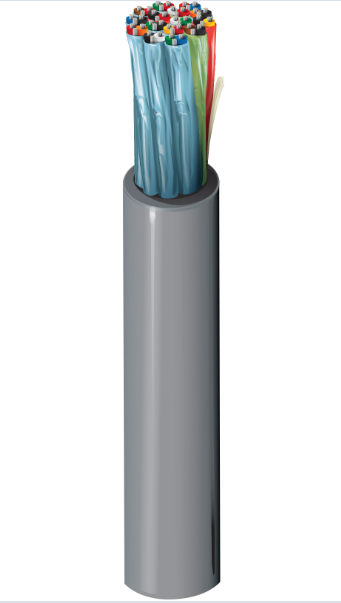

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of multipair individually screened cables-belden equivalent 9736 in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
APPLICATION
This cable is commonly selected for:
- Professional broadcast and live broadcast multi-track audio transmission & remote equipment control
- Smart city and super large complex multi-system integrated wiring
- Intelligent manufacturing and industrial automation multi-station control & data acquisition
- Large-scale venue and event multi-system linkage control & audio transmission
- Large-scale scientific research test platform multi-channel synchronous data acquisition
- Rail transit and large-scale vehicle onboard multi-system control & audio transmission
CONSTRUCTION
|
Conductor Material |
Tinned copper |
|
Conductor Surface / Structure |
7/32AWG |
|
Core Insulation Material |
Foam PE |
|
Screen1 Material |
Bi-Laminate (Alum+Poly) |
|
Drain Material |
Tinned copper |
|
Screen2 Material |
N/A |
|
Material Outer Sheath |
PVC |
CHARACTERISTICS
|
Cable performance(at 20℃) |
Data of product |
|
Inner Conductor DC Resistance |
≤79Ω/km |
SPECIFIATION FOR APPROVAL
|
Impedance |
100±10Ω |
|
Capacitance conductor to conductor |
Nom.41.0pF/m |
|
Capacitance conductor to shielded |
Nom.76.1pF/m |
|
Max.operation voltage |
300V |
|
Operating temperature |
-20℃ to+75℃ |
|
General requirements |
RoHS Compliant |
REGULAR PACKING
100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum
Structural Design & Signal Benefits
17-pair 24AWG tinned copper cable, individual HDPE insulation, per-pair 100% individual shielding & dedicated drain wire, hierarchical cabling, PVC jacket; 17-channel zero-crosstalk transmission, strong anti-interference, low attenuation, full consistency, flexible and durable.
Installation & Performance Considerations
Bending radius ≥8×OD, per-pair shielding grounded (≤4Ω, single-point only); avoid high-voltage interference, install in indoor dry environment to prevent PVC aging; inspect insulation (≥100MΩ) with 1000V megohmmeter; control transmission distance per RS-232/422 protocol, regular maintenance, avoid damage and overloading.
