Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of 4×22awg profinet industrial ethernet cable cat5e green pvc jacket chatnow in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.

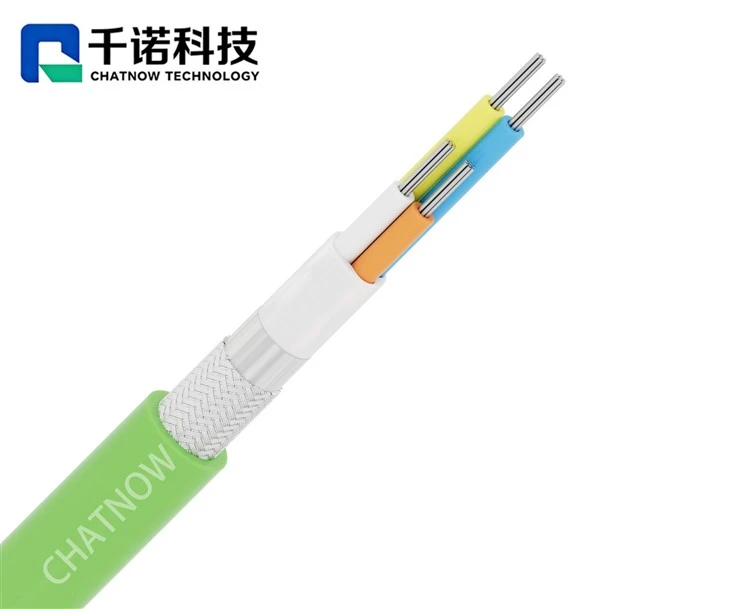

SPECIFICATION FOR APPROVAL
| Style | PROFINET Cable |
| Size | CAT 5e 4×22AWG |
CHARACTERISTICS
| Parameter | Value |
|---|---|
| Inner Conductor DC Resistance | ≤8.96Ω/km |
| Rated Voltage | 300/300V |
| Operating Temperature | -20℃ ~ +75℃ |
| Flame Requirement | IEC 60332-1-2 |
| Environmental | RoHS Compliant |
APPLICATION
- PROFINET industrial Ethernet
- Factory automation and control systems
- Process control networks
- Industrial switch interconnection
- Robotics and motion control communication
KEY FEATURES
- Cat5e performance – supports 100MHz bandwidth
- Double shielding (foil + braid) – excellent EMI protection
- 22AWG stranded tinned copper – flexible and corrosion-resistant
- Green PVC jacket – industry standard color for PROFINET
- Suitable for industrial environments
ABOUT COMPANY
UL/CE certified manufacturer of audio, control, and communication cables. We specialize in custom solutions for professional audio, industrial, and infrastructure projects.
MANUFACTURING PROCESS
Controlled production covering conductor stranding, PP insulation, and LSZH jacketing. Finished cables tested before shipment.
CERTIFICATIONS
UL, CE, and RoHS certified.
QUALITY INSPECTION
Each cable tested for conductor resistance and dielectric strength before shipment. Visual checks throughout production. Every reel meets specification before shipping.
SPECIFICATION FOR APPROVAL
| Style | BUS Cable |
| Size | RS485 2×2×22AWG |
| Standard | EIA/TIA RS-485 |
| P/N | CH012 |
CONSTRUCTION
| Parameter | Specification |
|---|---|
| Conductor | 22AWG, 7/0.254mm Stranded Tinned Copper |
| Insulation | Foam PE, 1.80±0.10mm |
| Pair Colors | White/Blue, White/Orange |
| Filler | PP Filler |
| Tape | Al/PET Foil |
| Drain Wire | 7/0.20mm Tinned Copper |
| Braid Shield | Tinned Copper, ≥80% Coverage |
| Outer Jacket | TPE, 9.00±0.50mm, Optional Color |
APPLICATION
- RS485 serial communication
- Modbus RTU networks
- Industrial automation and control systems
- Building automation
- Data acquisition and monitoring equipment
- Panel wiring and equipment interconnection
REGULAR PACKING
Standard length: 305m (1000ft) / reel
Wooden reel or plastic spool available
Customized lengths upon request
Protective stretch film and export carton packaging optional
