Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of rs485 overall shielded cable 7×2×24awg in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
RS485 overall shielded cable for industrial automation. Seven twisted pairs of 24AWG tinned copper, dual shielding, stable 100Ω transmission. Foam-PE insulation, black PVC jacket. Custom lengths available.

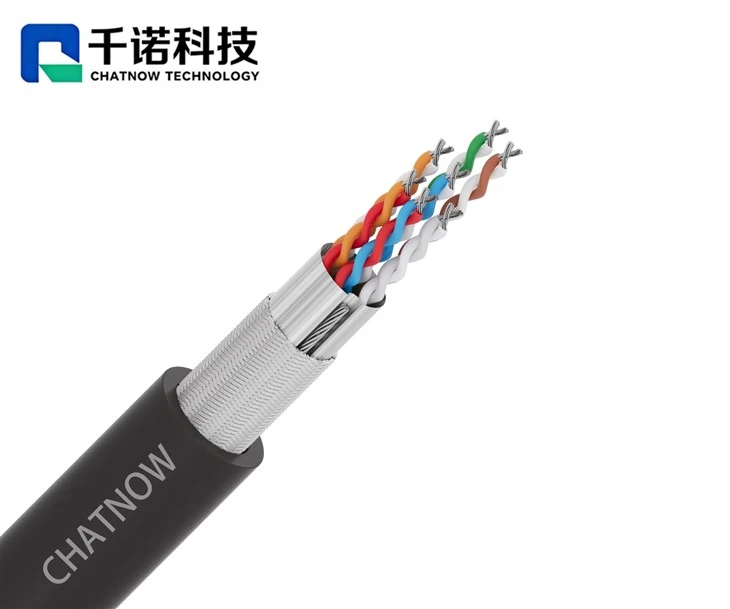

🔌 RS485 Cable - 3D Product View
🔌 RS485 Cable - Cross-section View
APPLICATION
- Industrial automation and control systems
- RS485 communication networks
- PLC and data acquisition systems
- Factory floors and control cabinets
CONSTRUCTION
Stranded tinned copper
7/0.20±0.01mm (24AWG)
Foam-PE
1.20±0.10mm
White/Blue, White/Orange, White/Green, White/Brown, White/Grey, Red/Blue, Red/Orange
Al/PET foil
7/0.20mm Tinned copper
Tinned copper, coverage ≥65%
6.90±0.30mm
PVC
8.70±0.30mm
Black
TECHNICAL PARAMETERS
≤90.9Ω/km
100±10Ω
Nom. 41pF/m
Nom. 72pF/m
1kV/1min, no breakdown
300V
-30℃ to +80℃ (fixed)
IEC 60332-1-2
RoHS
PACKING
Wooden drum / Plastic reel / Iron reel / Carton
Customized per cable length
As per customer request
Available (e.g. 100m / 500m / 1000m)
📦 Wooden Drum Packing
📦 Plastic Reel Packing
📦 Iron Reel Packing
📦 Carton Packing
ABOUT CHATNOW TECHNOLOGY
Chatnow Technology manufactures bus, control, and industrial communication cables for automation, energy, and infrastructure projects. Our factory handles drawing, insulation, twisting, shielding, and jacketing in-house - with full electrical testing before every shipment.
MANUFACTURING PROCESS
- Stranded tinned copper conductor - 7/0.20mm per core
- Foam-PE insulation extrusion - 1.20mm O.D.
- Twisting 7 color-coded pairs with controlled lay length
- Al/PET foil + tinned copper braid shielding (≥65%)
- Black PVC jacket extrusion and marking print
- DC resistance, impedance, capacitance and 1kV dielectric test
CERTIFICATIONS
Our cables are manufactured under ISO 9001 quality management and comply with RoHS and CE requirements. Full test reports and certificates are available on request.
QUALITY INSPECTION
- Conductor DC resistance - ≤90.9Ω/km
- Impedance - 100±10Ω
- Capacitance - 41pF/m (pair) / 72pF/m (shield)
- Test voltage - 1kV/1min, no breakdown
- Visual and dimensional inspection before drumming
📩 Get a Quote or Sample
Send us your requirements - we'll respond within 24 hours.
Contact Us →We speak English & 中文 · Fast response · Custom orders welcome
RELATED PRODUCTS
FAQ
Q: What is this cable used for?
RS485 communication in industrial automation, control systems, PLC networks, and data acquisition - anywhere a stable 100Ω link is required over long runs.
Q: What does "overall shielded" mean?
The whole cable is wrapped in Al/PET foil plus a tinned copper braid. This blocks electromagnetic interference from motors, drives, and other equipment on the factory floor.
Q: Do you offer custom lengths and marking?
Yes. Standard lengths run from 100m to 1000m. Custom drum sizes, cable lengths, and print marking are available - tell us your requirements.
Q: Can I get samples before ordering?
Yes. Send us your specifications and we will confirm sample availability, cost, and lead time. Sample charges can be discussed based on order volume.
Q: What is the MOQ and lead time?
MOQ depends on cable type and length. Typical production lead time is 7–15 working days after order confirmation. Contact us for a specific quote.
Q: Can you print our brand or part number on the cable?
Yes. Custom print marking is available - your brand, part number, or specification text. Send us the exact wording before production.
