Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of li11y 11y combination flexible cable 4×4awg+5×18awg pur jacket in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.

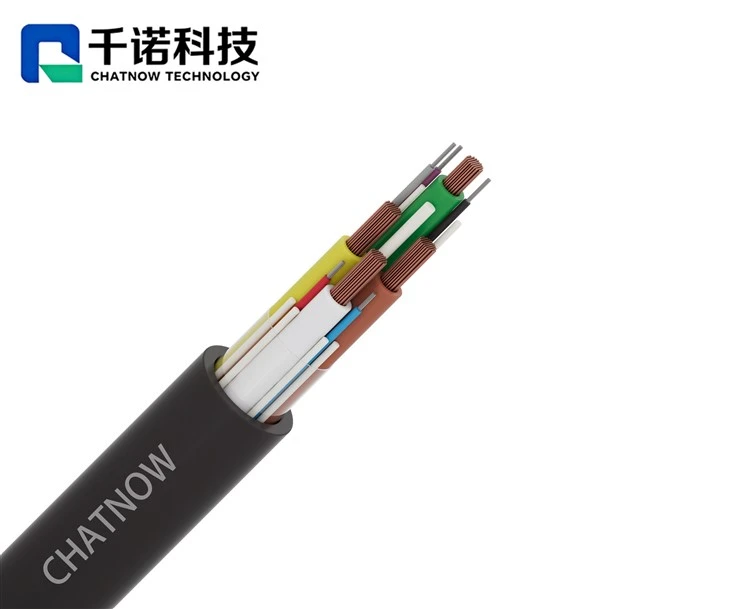

SPECIFICATION FOR APPROVAL
| Style | Combination Flexible Cable |
| Size | 4×4AWG+5×18AWG PUR |
CHARACTERISTICS
| Parameter | Specification |
|---|---|
| Power Conductor | 4AWG, 412/0.254mm Bare Copper Stranded |
| Power Insulation | PUR, 8.40±0.30mm |
| Power Colors | White, Brown, Green, Yellow |
| Control Conductor | 18AWG, 16/0.254mm Tinned Copper Stranded |
| Control Insulation | PUR, 2.10±0.15mm |
| Control Colors | Red, Blue, Black, Grey, Violet |
| Tape | PET Tape |
| Outer Jacket | PUR, 24.20±0.80mm, Black |
APPLICATION
- Industrial automation equipment
- Robotics and servo systems
- Simultaneous power and control signal transmission
- Drag chain and frequent flexing applications
- Machinery manufacturing and production lines
KEY FEATURES
- Combination design – power and control cores in one cable
- PUR insulation and jacket – abrasion, oil, and low-temperature resistant
- Wide temperature range – -60℃ to +140℃
- Flexible – suitable for drag chain and moving applications
- 1000V rated – suitable for power transmission
ABOUT COMPANY
UL/CE certified manufacturer of industrial flexible and control cables. We specialize in custom cable solutions for automation, robotics, and machinery applications. Our products are engineered for durability, reliability, and consistent performance in demanding industrial environments.
MANUFACTURING PROCESS
Controlled production covering conductor stranding, PP insulation, and LSZH jacketing. Finished cables tested before shipment.
CERTIFICATIONS
UL, CE, and RoHS certified.
QUALITY INSPECTION
Each cable tested for conductor resistance and dielectric strength before shipment. Visual checks throughout production. Every reel meets specification before shipping.
SPECIFICATION FOR APPROVAL
| Style | BUS Cable |
| Size | RS485 2×2×22AWG |
| Standard | EIA/TIA RS-485 |
| P/N | CH012 |
CONSTRUCTION
| Parameter | Specification |
|---|---|
| Conductor | 22AWG, 7/0.254mm Stranded Tinned Copper |
| Insulation | Foam PE, 1.80±0.10mm |
| Pair Colors | White/Blue, White/Orange |
| Filler | PP Filler |
| Tape | Al/PET Foil |
| Drain Wire | 7/0.20mm Tinned Copper |
| Braid Shield | Tinned Copper, ≥80% Coverage |
| Outer Jacket | TPE, 9.00±0.50mm, Optional Color |
APPLICATION
- RS485 serial communication
- Modbus RTU networks
- Industrial automation and control systems
- Building automation
- Data acquisition and monitoring equipment
- Panel wiring and equipment interconnection
REGULAR PACKING
Standard length: 305m (1000ft) / reel
Wooden reel or plastic spool available
Customized lengths upon request
Protective stretch film and export carton packaging optional
