4 Core 16AWG Nylon Braided Control Cable

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of 4 core 16awg nylon braided control cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.

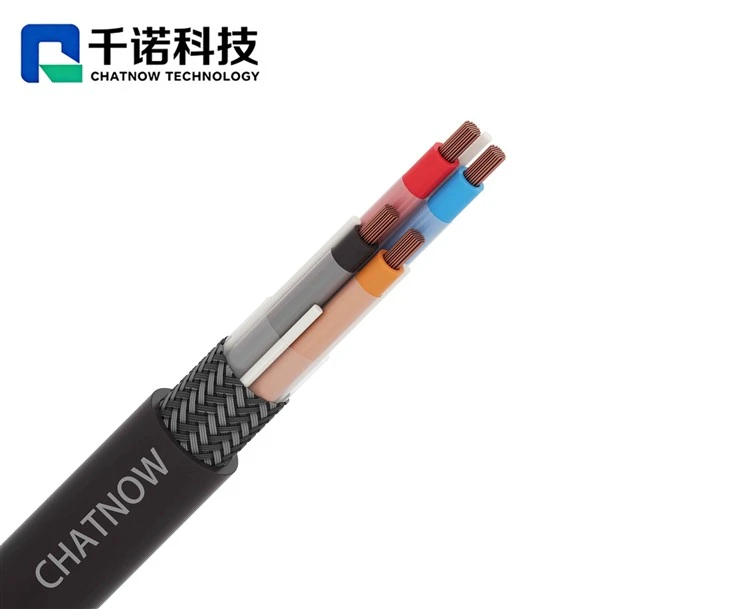

The cable incorporates four individually insulated 16AWG conductors arranged within a structured cable core. Internal filling materials help maintain the cable's overall geometry, while PET tape provides an additional wrapping layer around the core.

A Nylon braid is applied over the wrapped core to provide additional mechanical protection and improve resistance to external abrasion. The outer jacket then forms the final protective layer, helping the cable withstand the demands of industrial equipment and control applications.

This design is particularly useful where the cable may be exposed to:

• Repeated handling
• Cable routing and repositioning
• Mechanical friction
• Abrasion
• Equipment vibration
• Confined installation spaces
• General industrial operating conditions

The result is a cable that combines organized internal construction with enhanced external mechanical protection, making it suitable for a variety of control and equipment wiring applications.

KEY FEATURES

• 4 × 16AWG multi-core configuration
• Individually insulated conductors
• Color-coded cores for easy identification
• Multi-layer internal cable construction
• PET tape wrapping around the cable core
• Durable Nylon braided outer protection
• Protective outer jacket
• Flexible construction for equipment wiring
• Enhanced resistance to everyday mechanical wear
• Suitable for industrial control and automation applications
• OEM and customized cable constructions available

100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum

Structural Design & Performance Benefits

Individually Insulated Conductors

Each 16AWG conductor is independently insulated to maintain electrical separation between the four circuits. The color-coded cores also make identification easier during installation, maintenance, and troubleshooting.

Nylon Protective Layer

The Nylon layer provides additional protection around the individual insulated cores. It contributes to the cable's mechanical durability while supporting a flexible overall construction.

Internal Filler

Filler materials are incorporated into the cable core to help maintain a stable and well-organized internal configuration. This supports consistent cable geometry during manufacturing and installation.

PET Tape Wrapping

The PET tape provides an additional wrapping layer around the internal cable core. It helps organize the internal components and provides an intermediate protective barrier between the cable core and the external braided layer.

Nylon Braided Protection

The Nylon braid forms a durable protective layer around the cable. Its braided construction provides additional resistance to abrasion and mechanical wear while retaining useful flexibility for equipment wiring.

Protective Outer Jacket

The outer jacket provides the cable's primary external protection. It helps isolate the internal construction from the surrounding environment and supports reliable long-term use in industrial applications.

FAQ

Q1: What is the construction of this 4×16AWG cable?

A: The cable uses a multi-layer construction consisting of four 16AWG conductors, individual insulation, Nylon protection, filler, PET tape, Nylon braid, and an outer TPR jacket.

Q2: What is the purpose of the PET tape?

A: PET tape is used to wrap and organize the internal cable core. It provides an additional intermediate protective layer between the internal components and the Nylon braided layer.

Q3: What does the Nylon braid do?

A: The Nylon braid provides additional mechanical protection, particularly against abrasion and general external wear. It also maintains flexibility compared with some rigid protective structures.

Q4: Is this cable shielded?

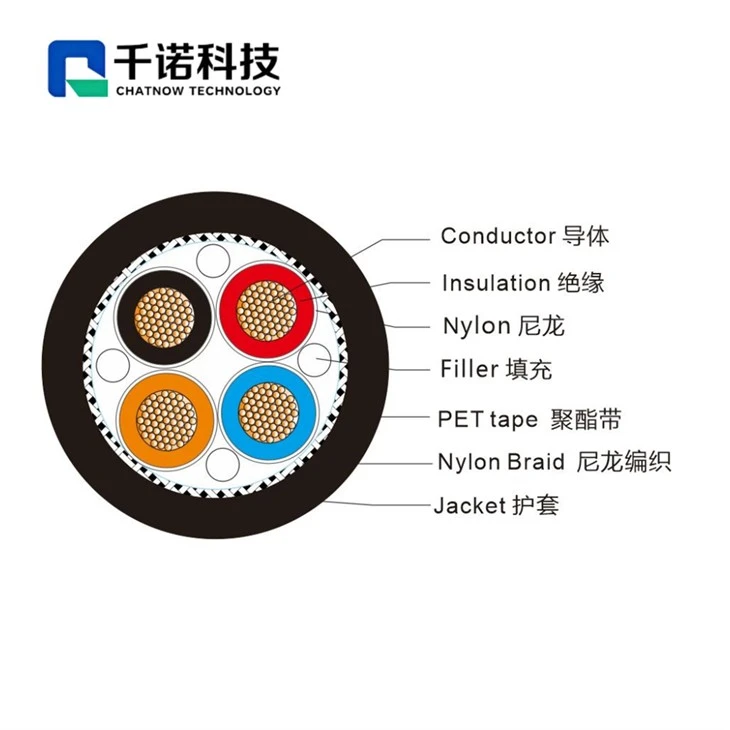

A: The Nylon braid shown in the construction diagram is a mechanical protective braid, not an electromagnetic shielding layer. If EMI/RFI protection is required, an additional conductive shielding layer can be incorporated into the cable design.

Q5: Why use four 16AWG conductors?

A: The 4×16AWG configuration provides four individually insulated conductors within one cable, allowing multiple control or electrical circuits to be managed through a single cable assembly.
