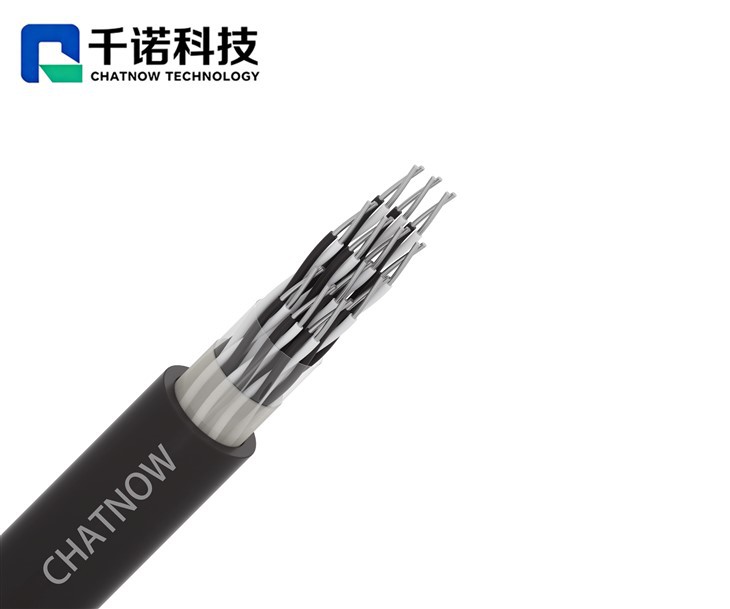

Instrumentation Cable 12PRx1.0mm2

Style：Control Cable
Size ：17AWG(1.0mm2)×12PR
In industrial control systems with multiple control loops, wiring complexity often increases as more signals need to be transmitted within limited space. This 12-pair control cable is developed to simplify signal and control wiring in automation equipment and electrical control systems where centralized multi-pair transmission is required. By integrating multiple control pairs into a single cable, it helps reduce wiring density while maintaining organized and stable signal transmission.

Send Inquiry

Description

Technical Parameters

APPLICATION

This cable is commonly applied in situations such as:

Industrial automation systems with multiple control signals
Machinery control units requiring centralized wiring
Electrical control panels with medium-power multi-pair layouts
Automation equipment where signal grouping improves installation efficiency

CONSTRUCTION

Item	Description

Conductor Material

Stranded Tinned Copper

Conductor Size

17AWG (1.0mm²) × 12 Pair

Core Insulation

Inner Filling

Jelly Filler

Screening Layer

PET Tape

Drain Wire

Outer Sheath

LSZH

CHARACTERISTICS

Cable performance(at 20℃)	Data of product
nner Conductor DC Resistance	≤18.2Q/km
Operating temperature	-20~+90℃
Operating voltage	300V
General requirements	RoHS2.0

REGULAR PACKING

The cable can be supplied in various standard lengths:

100M / 300M / 500M / 1000M
500FT / 1000FT
Coil or Drum packaging

Packing format can be adjusted based on installation or shipping requirements.

Product Advantages

12-pair structure supports centralized control and signal management
Helps reduce cable congestion in complex control systems
PE insulation ensures stable electrical performance
LSZH outer sheath improves safety in enclosed or public industrial spaces
Suitable for fixed installation in automation and control environments

Support Available for This Product

Custom pair count and cable structure available upon request
Stable production capacity for automation projects
Technical assistance for control system cable selection
Sample support for project verification

FAQ

Q: Why choose a 12-pair control cable instead of multiple single cables?
A: Using a multi-pair cable helps simplify wiring, reduce installation time, and improve cable management in complex control systems.

Q: Is this cable suitable for enclosed or public industrial environments?
A: Yes. The LSZH outer sheath helps limit smoke and harmful gas emission in case of fire.

Q: Can the cable be customized for specific control systems?
A: Yes. Pair count, insulation, and sheath materials can be adjusted according to project needs.
