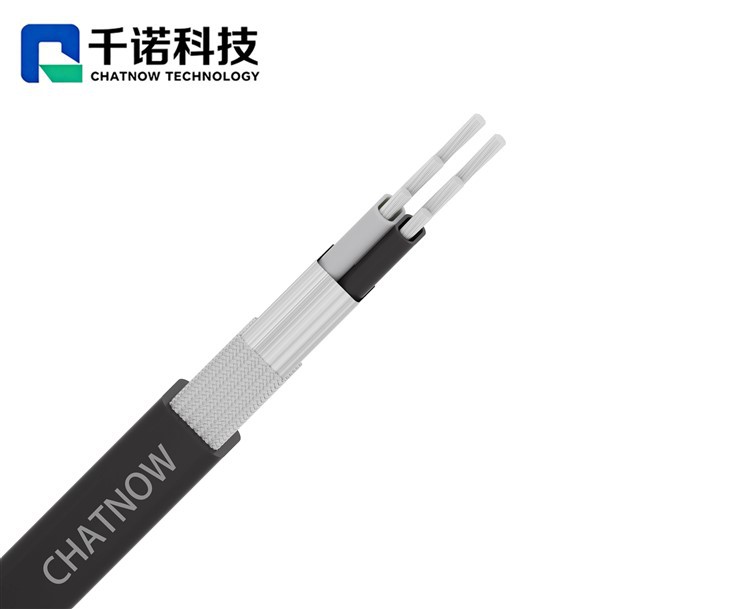

Shielded Power Cable 2×6mm2

Style：Shielded power cable
Size：2×6mm2 TC/LSZH/AL/TCWB/LSZH
2-core 2×6mm2 cross-section flexible flat cable, available in multiple types to meet diverse medium-power transmission needs. Integrating ultra-flexible structure, space-saving flat design, and optional shielding, it’s tailored for compact installation, dynamic bending, and limited-space scenarios in industrial, automotive, and electronic equipment

Send Inquiry

Description

Technical Parameters

APPLICATION

This shielded power cable is designed for reliable power transmission with enhanced electromagnetic interference protection, and is widely used in industrial power systems, communication facilities, and sensitive equipment installations.

product-1283-650

CONSTRUCTION

Conductor Material	TINNED COPPER
Conductor Surface	2×16mm2
Core Insulation Material	LSZH
Screen1 Material	AI/MYLAR WRAP
Drain Material	N/A
Screen2 Material	Tinned copper wire braid
Material Outer Sheath	LSZH

CHARACTERISTICS

Cable performance(at 20℃)	Data of product
Inner Conductor DC Resistance	≤3.39Ω/km
Outer Conductor DC Resistance	≤5.09Ω/km
Test voltage	AC 2KV/min
Operating voltage	100V
operating temperature	-20~+90℃
Fire resistance	IEC 60332-3-24
Environmental requirement	RoHS

Core Advantages

Flat Design for Space-Saving Installation

Thin, flat profile eliminates the bulk of round cables, fitting seamlessly in narrow gaps, tight equipment enclosures, and dense wiring harnesses. Reduces wiring space by 30%+ compared to traditional round cables, ideal for compact electronic and industrial devices.

Ultra-Flexible for Dynamic Bending

Specialized flat stranding structure + high-quality flexible insulation, supporting millions of bending cycles (minimum bending radius ≤3× cable thickness). Perfect for dynamic connection scenarios (e.g., equipment hinges, moving components) without conductor breakage or insulation damage.

6mm² Stable Medium-Power Transmission

2-core 6mm² multi-strand oxygen-free copper conductors ensure excellent conductivity and heat dissipation, supporting 40-55A current-carrying capacity (25℃, free air). Reliable for medium-power supply in industrial equipment, automotive systems, and electronic modules.

Quality Assurance

Environmental Certification: RoHS/REACH certified, non-toxic and eco-friendly, suitable for indoor/outdoor installation.

Strict Quality Testing: 100% pre-shipment inspection covers conductor conductivity, flexibility, shielding coverage, and insulation performance.

Bending Durability: All types pass millions of bending tests, ensuring long service life in dynamic connection scenarios.

REGULAR PACKING

Custom-length spools (50ft~500ft) to reduce waste during wiring
Bulk packaging with flat cable installation tools (crimpers, connectors) as a set
Custom laser-printed labels (type, spec, current-carrying capacity, batch) for easy management
