Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of armored instrumentation cable 2pr×1.0mm² lszh shielded control cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.



This cable features tinned copper conductors, PE insulation, Al/PET foil shielding with drain wire, LSZH inner and outer jackets, and galvanized steel wire armor, providing excellent electromagnetic interference (EMI) protection, mechanical strength, and long-term durability in harsh industrial environments.

With a low smoke zero halogen (LSZH) outer sheath, this cable is suitable for applications where safety, reliability, and environmental protection are critical.

The Armored Instrumentation Cable is widely used for:

• Industrial automation control systems
• Process instrumentation systems
• PLC and DCS signal transmission
• Security and monitoring systems
• Building automation
• Oil & gas facilities
• Power plants
• Chemical and manufacturing industries
• Outdoor and underground control installations

The steel wire armor provides additional protection against mechanical impact, crushing, and rodent damage, making it suitable for demanding industrial environments.



100M, 300M, 500M, 1000M, 500FT, 1000FT, Coil/Drum

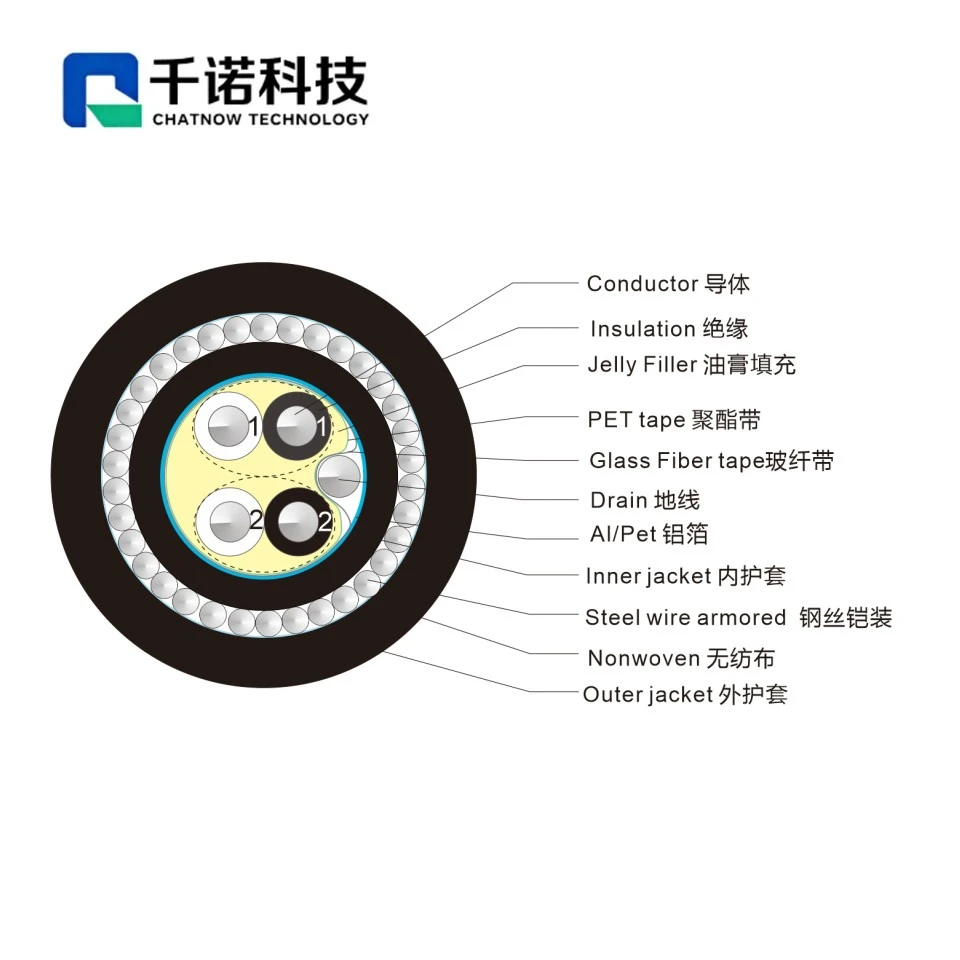

Structural Design & Signal Benefits

1. Tinned Copper Conductor

Construction:

• Conductor size: 17AWG (1.0mm²)
• Structure: 1/1.12 ±0.005mm
• Material: Tinned copper

Benefits:

• Excellent electrical conductivity
• Enhanced corrosion resistance
• Suitable for long-term industrial applications
• Improved solderability and connection reliability

2. PE Insulation

Insulation Material:

• Polyethylene (PE)

Features:

• Excellent dielectric performance
• Low moisture absorption
• Stable electrical characteristics

Color Identification:

• White1 / Black1
• White2 / Black2

3. Twisted Pair Construction

Pair Arrangement:

• White1 + Black1
• White2 + Black2

Benefits:

• Reduces electromagnetic interference
• Improves signal stability
• Suitable for sensitive instrumentation signals

4. Shielding System

Shield Structure:

• Aluminum/PET foil shielding
• Tinned copper drain wire

Shield Coverage:

• 100% foil coverage

Benefits:

• Excellent EMI/RFI protection
• Minimizes signal interference
• Ensures accurate data transmission in industrial environments

5. LSZH Inner Jacket

Material:

• LSZH

Diameter:

• 9.8 ±0.20mm

Advantages:

• Low smoke emission
• Halogen-free safety performance
• Suitable for enclosed areas and public facilities

6. Steel Wire Armor Protection

Armor Type:

• Galvanized Steel Wire Armour (SWA)

Coverage:

• ≥95%

Diameter:

• 11.60 ±0.50mm

Advantages:

• High mechanical protection
• Resistant to crushing and impact
• Suitable for direct burial and harsh environments

7. LSZH Outer Jacket

Material:

• LSZH

Color:

• Black

Outer Diameter:

• 16.60 ±0.50mm

Nominal Thickness:

• 2.50mm

Benefits:

• Excellent environmental protection
• Flame retardant characteristics
• Durable against abrasion and outdoor conditions



Installation & Performance Considerations

Installation Recommendations

• Avoid excessive bending during installation
• Maintain minimum bending radius according to cable specifications
• Ensure proper grounding of shield and armor layer
• Use suitable cable glands for armored cable termination

Performance Advantages

✔ Strong mechanical protection
✔ Excellent EMI shielding performance
✔ Reliable signal transmission
✔ LSZH safety protection
✔ Suitable for industrial harsh environments



FAQ

Q1: Is this cable suitable for outdoor installation?

Yes. The galvanized steel wire armor provides excellent mechanical protection, while the LSZH outer jacket offers environmental resistance for outdoor applications.



Q2: What is the purpose of the aluminum foil shield?

The Al/PET foil shield reduces electromagnetic interference (EMI) and protects sensitive control signals from external electrical noise.



Q3: Can the cable be customized?

Yes. Chatnow Cable provides customized solutions including conductor size, pair numbers, shielding structure, jacket materials, and marking requirements.



Q4: Is this cable halogen-free?

Yes. Both inner and outer jackets use LSZH material, complying with RoHS 2.0 environmental requirements.



Q5: What industries use this cable?

It is commonly used in industrial automation, instrumentation, oil & gas, power generation, manufacturing, and process control systems.
