Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of devicenet bus cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
Chatnow Technology manufactures this DeviceNet bus cable for industrial automation networks that combine power and data in a single run. The cable carries two 17AWG power conductors alongside one shielded twisted pair of 22AWG for data, reducing the number of separate cables needed between controllers, I/O blocks, and field devices.
A water-blocking tape and flame-retardant PU jacket allow the cable to be used in wet areas, cable trays, and moving machine parts. Custom lengths, jacket colors, and printing are available on request.

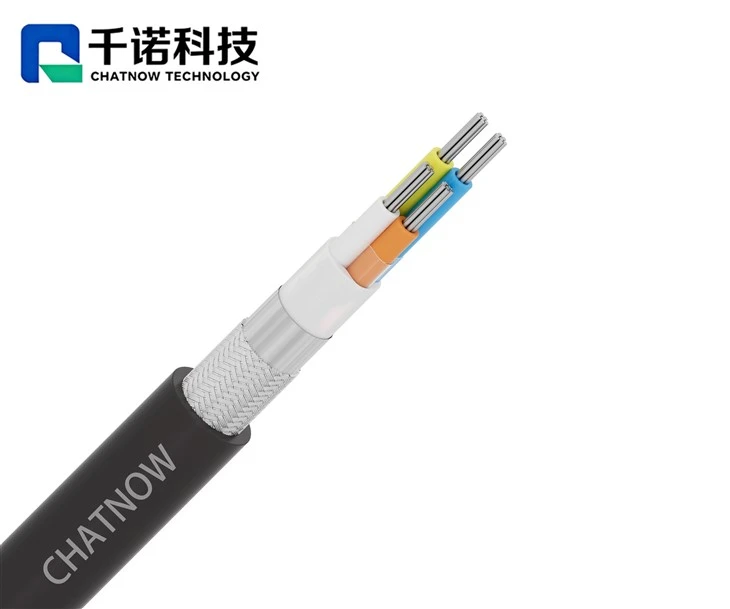

🔌 DeviceNet Bus Cable - 3D Product View

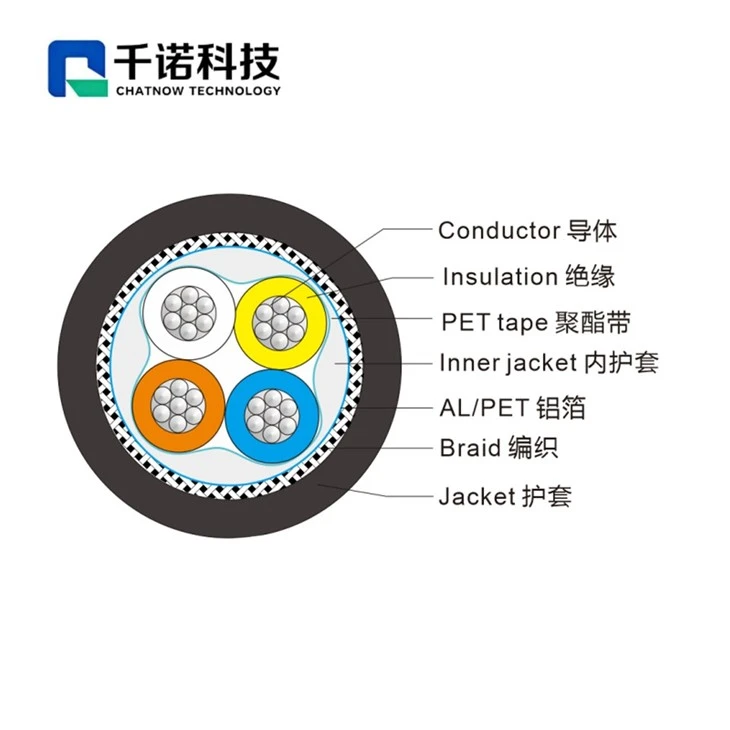

🔌 DeviceNet Bus Cable - Cross-section View
APPLICATION
- DeviceNet trunk and drop lines between PLCs, scanners, and I/O blocks
- Factory automation and assembly line networks
- Machinery with combined power and data requirements
- Wet or humid areas where water-blocking protection is required
CONSTRUCTION
19/0.254±0.008mm Tinned copper
7/0.254±0.008mm Tinned copper
PP, 2.25±0.10mm O.D.
Foam-PE, 1.70±0.10mm O.D.
Red, Black
White / Blue
Al/Mylar foil
7/0.20mm Tinned copper
Water-blocking tape
5.20±0.30mm
FR PU (Flame Retardant Polyurethane)
7.50±0.30mm
Dark blue
TECHNICAL PARAMETERS
≤17.9Ω/km
≤57.4Ω/km
Nom. 100±10Ω
Nom. 46pF/m
300V
-20℃ to +70℃
IEC 60332-1-2
RoHS & REACH
PACKING
Wooden drum / Plastic reel / Iron reel / Carton
Customized per cable length
As per customer request
Available (e.g. 100m / 500m / 1000m)
📦 Wooden Drum Packing
📦 Plastic Reel Packing
📦 Iron Reel Packing
📦 Carton Packing
ABOUT CHATNOW TECHNOLOGY
Chatnow Technology builds bus, control, and industrial communication cables for automation, energy, and transport projects. Our engineers work directly with customers on custom conductor layouts, shielding options, and jacket materials - so the cable fits your network instead of the other way around.
MANUFACTURING PROCESS
- Tinned copper stranding - 19-strand power core and 7-strand data core
- PP and Foam-PE insulation extrusion with tight diameter control
- Data pair twisting and Al/Mylar foil shielding with drain wire
- Cabling with water-blocking tape to seal the core
- FR PU jacket extrusion, cooling, and final electrical check

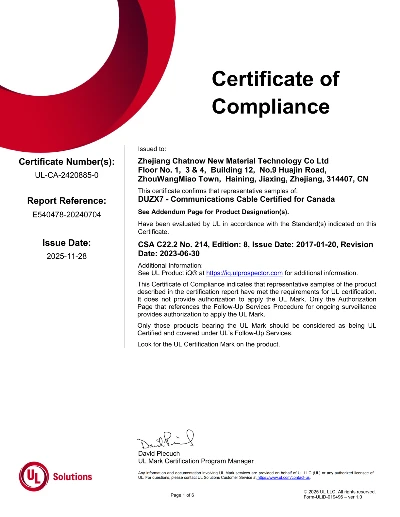

CERTIFICATIONS
- RoHS · REACH · ISO 9001 · IEC 60332-1-2 Certified
QUALITY INSPECTION
- DC resistance test - 17AWG ≤17.9Ω/km, 22AWG ≤57.4Ω/km
- Impedance check on the data pair - 100±10Ω
- Capacitance measurement - nominal 46pF/m
- Shield continuity and drain wire contact test
- Jacket O.D. and print verification before drumming
