1-pair 22AWG PROFIBUS DP cable designed for reliable communication in automation networks. Solid bare copper conductor with foam PE insulation, foil + braid shielding, and LSZH jacket. 150Ω impedance. Suitable for industrial fieldbus applications where low smoke and zero halogen emissions are required.
Send Inquiry
Description
Technical Parameters

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of Profibus DP Fieldbus Cable in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.



SPECIFICATION FOR APPROVAL

Style Profibus DP Cable
Size Profibus DP 1×2×22AWG



MARKING

PROFIBUS DP CABLE 1PR x 22AWG VIOLET xxxxm





PACKING

Standard: 500m / Drum (wooden reel)

Customized lengths available



APPLICATION

PROFIBUS DP fieldbus networks

Factory automation and process control

PLC communication links

Industrial communication systems



FAQ

Q1: What is the impedance?
A: 150Ω ± 15Ω, designed for PROFIBUS DP networks.

Q2: What is the conductor size?
A: 22AWG, solid bare copper.

Q3: Is this cable shielded?
A: Yes, Al/Mylar foil + tinned copper braid (65% coverage).

Q4: What is the jacket material?
A: LSZH (Low Smoke Zero Halogen), violet color.

Q5: Can it be used outdoors?
A: No, indoor use only.

Q6: What approvals does it carry?
A: RoHS & REACH compliant.

ABOUT COMPANY



07
08
09
9
8
7
6
5
4
1



MANUFACTURING PROCESS

Precision-driven production: stranding, foam PE insulation, pair construction, shielding, LSZH jacketing. Every stage monitored. Fully tested before shipment.

MANUFACTURING PROCESS
MANUFACTURING PROCESS
MANUFACTURING PROCESS
MANUFACTURING PROCESS
MANUFACTURING PROCESS
MANUFACTURING PROCESS



CERTIFICATIONS



CERTIFICATIONS 1
CERTIFICATIONS 1
CERTIFICATIONS 2
CERTIFICATIONS 2
CERTIFICATIONS 3
CERTIFICATIONS 4
E540176-Fire Resistant Cable COC


QUALITY INSPECTION



12
13
14
15
16
17
18











Technical Specifications

Parameter Specification
Product Type Profibus DP Cable
Size 1×2×22AWG
Conductor 1/0.64±0.005mm Bare copper wire
Insulation Foam PE, 2.55±0.10mm O.D., 0.95mm Nom. Thickness
Core Color Red / Green

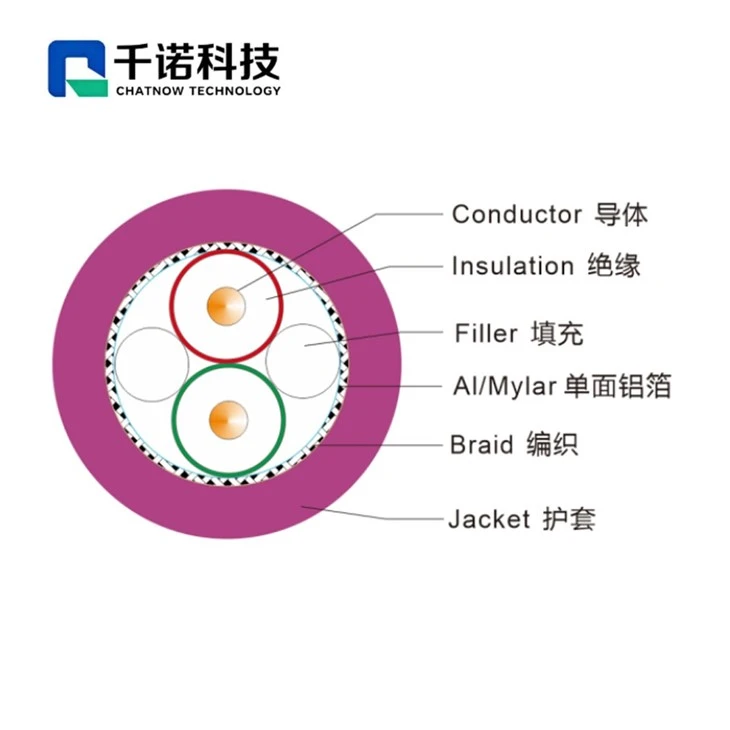

Cabling 22AWG/2C + PP Filler, Al/Mylar Tape, 5.30±0.20mm Twisted O.D.
Shield Tinned copper braid, 65% coverage, 5.80±0.20mm Braid O.D.
Outer Jacket LSZH, 7.80±0.20mm O.D., 1.0mm Nom. Thickness
Jacket Color Violet
Marking PROFIBUS DP CABLE 1PR x 22AWG VIOLET xxxxm
Inner Conductor DC Resistance (20°C) ≤55.4Ω/km
Impedance 150±15Ω @ 3~20MHz
Attenuation ≤22.0dB/km @ 4MHz; ≤42.0dB/km @ 16MHz
Velocity of Propagation 78%
Insulation Resistance ≥1GΩ·km
Operating Temperature -20°C to +75°C
Flame Retardancy IEC 60332-1-2
Smoke Density IEC 61034-1/2
Halogens & Acidity IEC 60754-1/2
Environmental Compliance RoHS & REACH Compliant
Packing 500m drum (wooden)
Weight Approx. 75 kg/km
