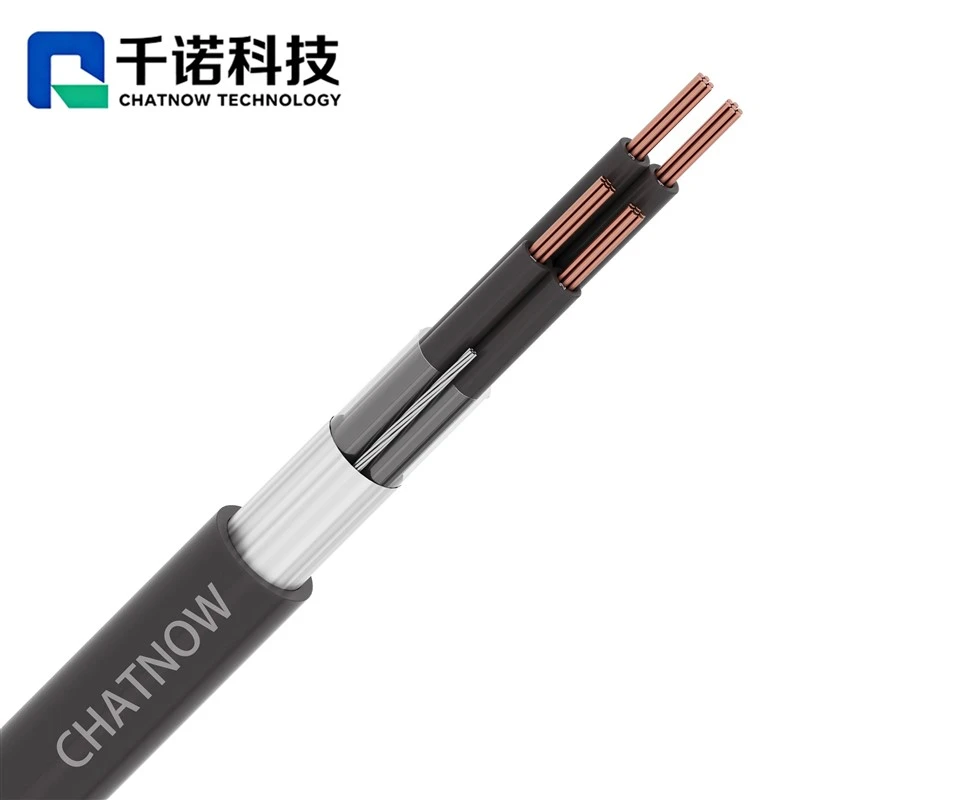

XLPE Shielded Control Cable 4×1.5mm² 500V

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of xlpe shielded control cable 4×1.5mm² 500v in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.

Its flexible construction, stable electrical performance, and flame-retardant LSZH sheath make it an ideal solution for building automation, industrial control panels, HVAC systems, security systems, and power distribution circuits requiring dependable signal integrity.

The LSZH Shielded Control Cable is suitable for:

• Industrial control and automation systems
• Building management systems
• HVAC control circuits
• PLC and instrumentation wiring
• Security and access control systems
• Fire alarm and emergency control equipment
• Manufacturing machinery
• Data acquisition and monitoring systems
• Indoor public buildings requiring LSZH cable installations
• General low-voltage power and control applications (500V)

Packing Length: 100m / Roll

Optional Length: 200m, 300m, 500m,500FT, 1000FT

Drum Type: Wooden Drum

OEM Service: Available

Printing: Customized Logo & Meter Marking

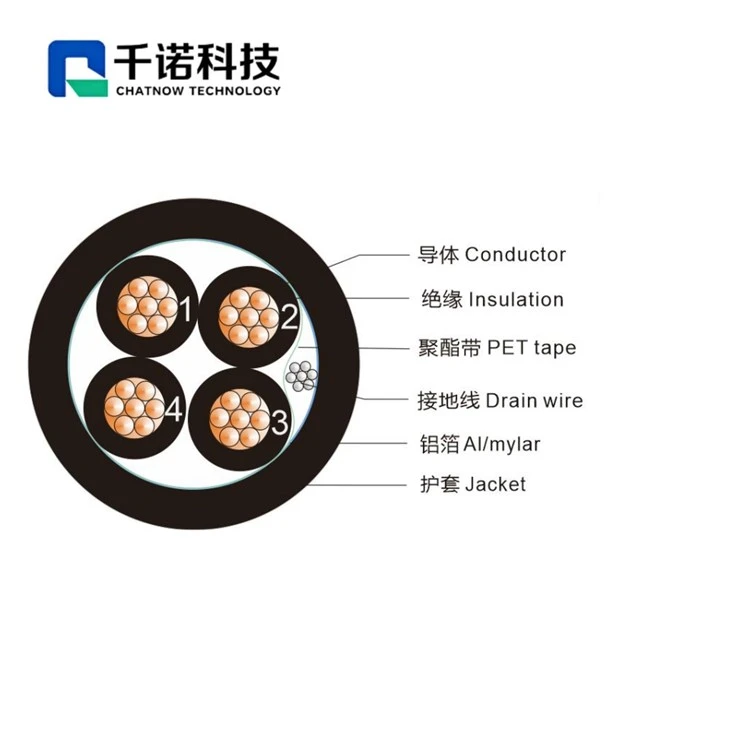

Structural Design & Signal Benefits

Component

• Benefit

Bare Copper Conductors

• High conductivity with low electrical resistance for stable current transmission.

PVC/XLPE Core Insulation

• Excellent dielectric strength and conductor identification.

PET Tape Binder

• Maintains cable geometry and improves mechanical stability.

Aluminum/Mylar Foil Shield

• Provides nearly 100% shielding coverage against electromagnetic interference (EMI).

Tinned Copper Drain Wire

• Enables efficient grounding and simplifies shield termination.

LSZH Outer Jacket

• Produces minimal smoke and no corrosive halogen gases during fire, improving occupant safety.

500V Rated Construction

• Suitable for a wide range of industrial control and low-voltage power applications.

Key Performance Advantages

• Excellent EMI/RFI shielding performance
• Reliable signal transmission over long distances
• Low smoke, halogen-free fire safety
• Good flexibility for easy installation
• High mechanical durability
• Stable electrical performance in industrial environments
• Suitable for fixed indoor installations

Installation & Performance Considerations

Installation Recommendations

• Maintain the minimum bending radius during installation.
• Ground the drain wire correctly for optimal shielding performance.
• Avoid excessive tensile force during cable pulling.
• Separate control cables from high-power cables whenever possible.
• Use suitable cable glands to preserve shielding continuity.
• Recommended for indoor fixed installation or protected cable trays.

Environmental Performance

• Rated Voltage: 300/500V (or 500V according to specification)
• Conductor: Flexible Bare Copper
• Shield: Aluminum/Mylar Foil + Drain Wire
• Jacket: LSZH
• Flame Retardant: IEC 60332 compliant (available upon request)
• Operating Temperature:
• Fixed Installation: -20°C to +70°C
• Installation Temperature: ≥0°C

FAQ

Q1. What is the primary purpose of the aluminum foil shield?

The aluminum/polyester foil shield minimizes electromagnetic interference (EMI) and protects sensitive control and communication signals from external electrical noise.

Q2. Why choose an LSZH jacket?

LSZH materials emit very little smoke and no corrosive halogen gases during fire, making them ideal for public buildings, tunnels, transportation facilities, hospitals, and commercial buildings.

Q3. What is the function of the drain wire?

The drain wire provides a simple and reliable grounding path for the foil shield, ensuring effective EMI protection and easier cable termination.

Q4. Can this cable be customized?

Yes. Chatnow Technology offers customized options including:

• Number of cores
• Conductor size
• Jacket color
• Shielding type
• Printing content
• Packaging length
• OEM branding
