Composite 8AWG/4C+18AWG/1PR

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of composite 8awg/4c+18awg/1pr in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.





Industrial Automation

Ideal for PLC modules, sensor hubs, and frequency converter wiring. 4C for power supply, 1PR for signal transmission, shielding resists on-site EMI, ensuring stable operation of automation systems.

Electronic & Instrumentation

Suitable for test instruments, measuring equipment, and electronic control panels. Compact multi-core design fits tight enclosures, flexible for internal wiring of precision devices.

Smart Home & Building Systems

Used for access control, monitoring, and HVAC system wiring. Integrated transmission simplifies wall/ceiling routing, adapting to complex building wiring environments.

Automotive & Marine Equipment

Oil-resistant variants fit in-vehicle and marine auxiliary wiring, with flexible structure adapting to vibration and narrow space, ensuring reliable power/signal transmission.

Medical Devices

Suitable for low-voltage medical equipment (e.g., small monitors) wiring. Non-toxic, eco-friendly materials (RoHS certified) and flexible design meet medical device safety requirements.

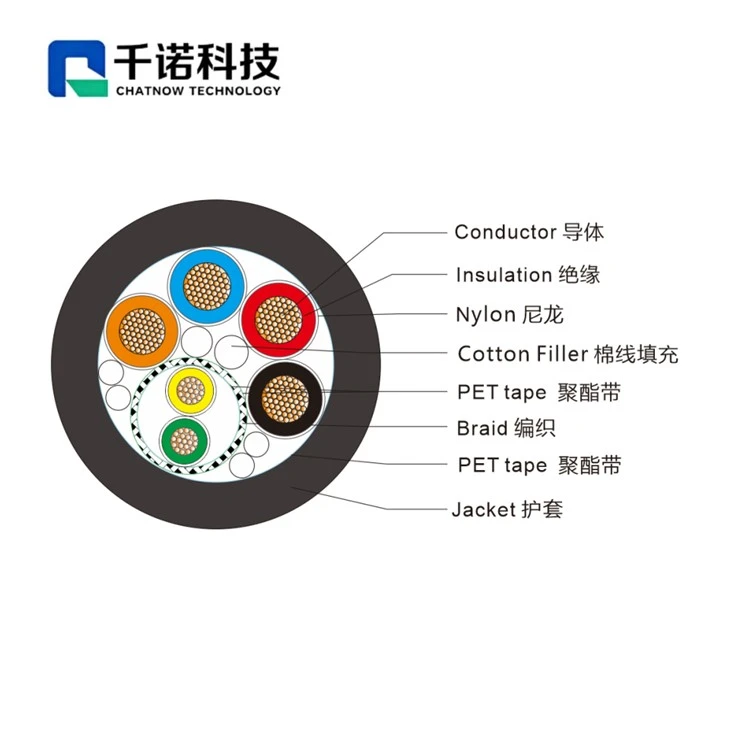

Conductor Material	BC
Conductor Surface	18AWG/4C+18AWG/1PR
Core Insulation Material	NYLON
Screen1 Material	PET TAPE
Drain Material	N/A
Screen2 Material	TC BRAID
Material Outer Sheath	TPR

Cable performance	Data of product
(20℃)Inner conductor DC resistance	≤21.9Ω/km
Rated voltage	600V
Testing voltage	2.0KV/5min no breakdown
Operating temperature	-40~+90℃
Environmental requirements	RoHS &REACH

• Shielding type selection based on EMI environment (aluminum foil/copper braided).
• Sheath material customization (PVC/XLPO/PUR) for oil-resistant, high-temperature needs.
• LSZH sheath option for public buildings and closed spaces.

• Conductor specification adjustment (20AWG~16AWG) to match power/signal demands.
• Core configuration modification (e.g., 5C+2PR) for specific transmission needs.
• Tinned/bare copper conductor option for anti-corrosion or conductivity preferences.

• Custom-length spools (50ft~500ft) to reduce wiring waste.
• Bulk packaging with matching installation tools (crimpers, strippers) as a set.
• Custom laser-printed labels (spec, batch, core function) for easy management.



FAQ

Q1: What's the advantage of 18AWG/4C+18AWG/1PR over single-core cables?

It integrates power supply (4C) and signal transmission (1PR) in one cable, reducing wiring quantity, simplifying harness layout, saving space and installation costs, and avoiding signal interference caused by separate wiring.

Q2: Which shielding type is suitable for industrial scenarios?

Copper braided shielding is recommended for high-EMI industrial environments (near frequency converters, heavy machinery), as it provides stronger anti-interference and mechanical protection than aluminum foil shielding.
