Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of profinet cat5e 22awg in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
Zhejiang Chatnow New Material Technology Co., Ltd. is a manufacturer of PROFINET and industrial Ethernet cables, serving automation and control system customers worldwide. This CAT5e 2×2×22AWG cable is designed for reliable communication between PLCs, I/O stations, and field devices in factory environments where electrical noise and mechanical stress are common.
The shielded construction helps maintain signal integrity, while the flexible TPE jacket allows easy installation in control cabinets and cable trays. Custom lengths, colors, and packaging are available upon request.
🌐 Chatnow New Material Technology Co., Ltd. 🇬🇧 English · 🇨🇳 中文 · 24h response
APPLICATION
- PROFINET communication between PLCs and distributed I/O stations
- Control cabinet internal wiring and automation panel connections
- Production line machinery and factory automation networks
- Industrial environments with electromagnetic interference (EMI) and vibration
- Retrofit and upgrade projects for legacy industrial networks

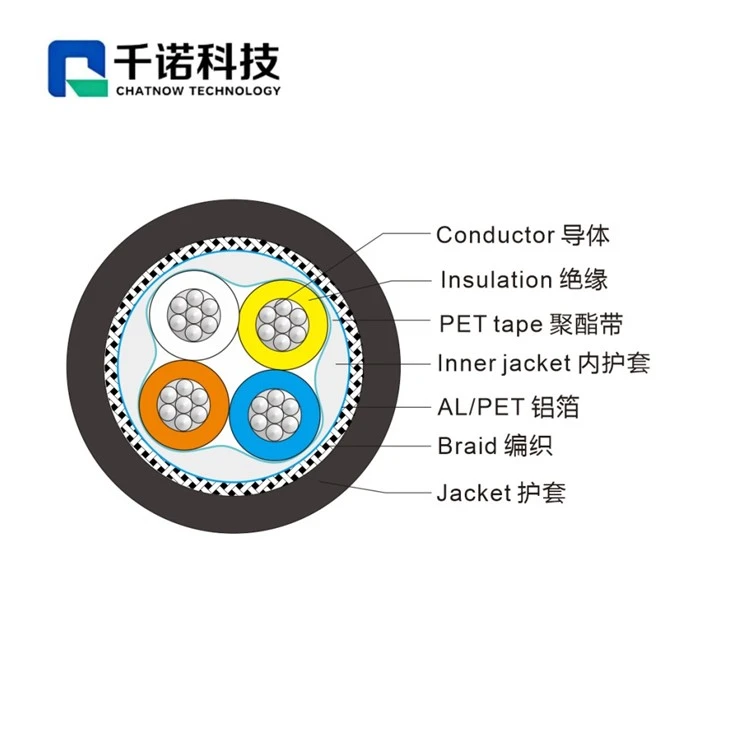

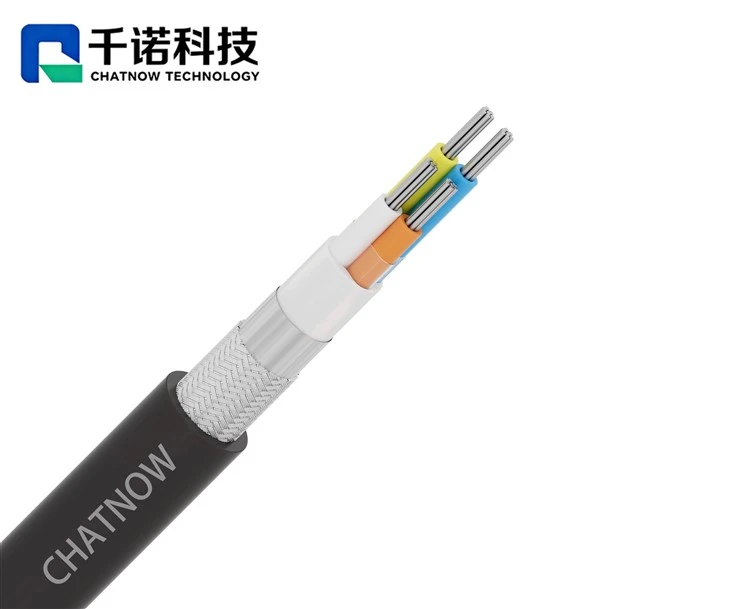

CONSTRUCTION
Tinned copper
7/0.254±0.01mm
PE
PET tape
Tinned copper
AI/PET
TPE
CHARACTERISTICS
≤57.4Ω/km
100±10Ω
56pF/m
1kV/1min, no breakdown
≥1GΩ·km
ABOUT COMPANY
Zhejiang Chatnow New Material Technology Co., Ltd. is a specialized manufacturer of PROFINET, RS485, and industrial communication cables. We serve automation, manufacturing, and infrastructure projects with reliable products and responsive service.
Workshop & Production Facility
Manufacturing Process
- Conductor stranding - precise twisting of tinned copper wires
- PE insulation extrusion - consistent diameter and dielectric properties
- Shielding application - PET tape + AI/PET foil with drain wire
- TPE outer sheath extrusion - flexibility and mechanical protection
- Final dimensional check and spooling - ready for shipment
Certifications
- UL · CE · RoHS · ISO 9001 · BSCI
QUALITY INSPECTION
- DC resistance test - ensures conductor quality and consistency
- Impedance and capacitance measurement - verifies signal integrity
- High-voltage withstand test - 1kV/1min, no breakdown
- Visual and dimensional inspection - checks outer sheath and markings
- Only cables that pass all checks are approved for shipment
-
-
-
📩 Need a Quote or Sample?
Send us a message and we'll reply within 24 hours.
Contact Us →We speak English & 中文 · Fast response · Custom orders welcome
Related Products
Profinet 4×22AWG Cat5e Cable PVC→ Profibus DP 1×2×22AWG→
TECHNICAL PARAMETERS
≤57.4Ω/km
100±10Ω
56pF/m
1kV/1min, no breakdown
≥1GΩ·km
IEC 60332-1-2
12 x Cable O.D.
