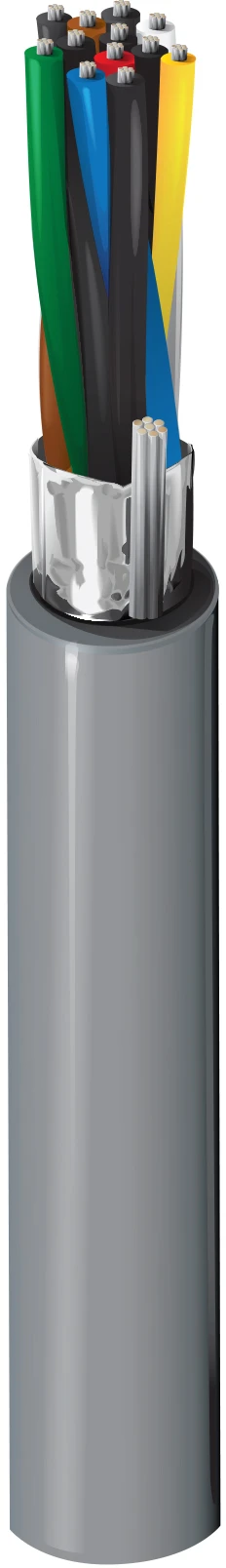

Zhejiang Chatnow New Material Technology Co., Ltd. is one of the leading manufacturers and suppliers of 6pr 24 awg low capacitance data cable – 100ω, overall foil shield, cm in China. With abundant experience, we warmly welcome you to wholesale bulk high quality products at competitive price from our factory. We also accept customized orders.
ABOUT COMPANY
We are a UL/CE certified cable manufacturer with a clear focus: delivering high-performance signal and data cables for industrial automation and commercial infrastructure. Our team combines technical expertise with efficient production to provide reliable products that meet international standards. We work closely with our customers to understand their specific requirements, ensuring that each order is produced with the right materials, construction, and testing protocols.
MANUFACTURING PROCESS
Our production system follows a structured workflow: conductor stranding, precise insulation extrusion, pair twisting, shielding application, jacket extrusion, and comprehensive electrical testing. Every step is monitored and documented to maintain full traceability. We operate with a commitment to consistency, and every reel is electrically verified before packaging to confirm it meets the required performance criteria.
CERTIFICATIONS
We hold UL, CE, and RoHS certifications across our product line, confirming compliance with North American and European safety and environmental standards. These certifications are maintained through regular internal audits and external testing, ensuring that our products consistently meet the expectations of our customers and regulatory bodies.
QUALITY INSPECTION
Quality control is an integral part of our production workflow. Each cable undergoes a series of tests, including conductor resistance measurement, capacitance verification, insulation resistance checks, and dielectric strength testing. Visual and dimensional inspections are performed at multiple points throughout production. These measures ensure that every cable we ship meets the specified tolerances and performance requirements.
SPECIFICATION FOR APPROVAL
| Style | Electronic Cable |
| Size | 24 AWG, 7x32 Stranded Tinned Copper |
APPLICATION
- RS-232/422 extended distance serial communication
- Computer and data network connections
- PLC and control system signal transmission
- Low voltage analog signals (4-20mA, 0-10V)
- Low voltage digital control (24V)
- Panel wiring and equipment interconnection
Structural Design & Signal Benefits
6 twisted pairs – organized pair layout for multi-channel data transmission
100Ω characteristic impedance – matches RS-232/422 interface requirements for stable signal transfer
Overall foil shield with drain wire – reduces EMI/RFI interference in industrial environments
PE insulation – low dielectric constant for consistent electrical performance
PVC jacket with ripcord – simplifies cable preparation and speeds up installation
CM rated – suitable for commercial building installations
Installation & Performance Considerations
- Max pull tension: 71.5 lbs (32.4 kg) – do not exceed during installation
- Minimum bend radius: 3.42 in (86.9 mm) – stationary installation
- Temperature range: -20°C to +80°C – indoor use only
- Voltage rating: 300V (CM) / 30V (AWM 2919)
- Avoid running parallel to high-voltage power cables – maintain separation to minimize EMI
